Airtac P-SDAT Repair Kit P-SDAT80-R1
Category: Cylinder Seal Kits
Brand: AirTAC Automation Group
Series: P-SDAT Series
Description:
This OEM repair kit contains complete sealing components for P-SDAT series pneumatic cylinders, including O-rings, guide rings, wear rings, piston seals, and rod seals. Engineered to factory specifications using nitrile (NBR) or polyurethane (PU) compounds for optimal chemical resistance and durability. Ensures proper cylinder rebore tolerance restoration and leakage prevention. Recommended for preventive maintenance or overhaul of ISO 15552 compliant pneumatic actuators. Kit contains all necessary sealing elements for standard cylinder maintenance excluding piston rods and cylinder barrels.
AirTAC P-SDAT80-R1 Repair Kit Technical Details
- Model: P-SDAT80-R1
- Compatibility: Designed for P-SDAT series 80mm bore cylinders

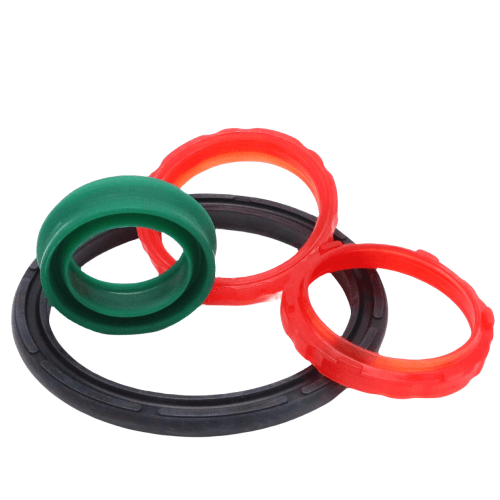

- Components Included:
- Rod seals (NBR/FKM optional)
- Piston seals (polyurethane)
- Wear bands (PTFE composite)
- O-rings (NBR/Silicon/Viton)
- Cushion seals & gaskets
- Spring retainers (stainless steel)
- Temperature Range: -30℃ to 120℃ (varies by seal material)
- Pressure Rating: Up to 1.6 MPa (16 bar)
- Chemical Resistance: Compatible with most industrial fluids (excluding strong acids/alkalis)
- Weight: 520g ±5% (complete kit)
- Package Dimensions: 240mm(L) × 180mm(W) × 45mm(H)
- Storage Requirements: Keep in original packaging at 15-25℃, 45-75% RH
- Service Life: 5,000km stroke distance (under standard operating conditions)
Comprehensive maintenance solution for SDAT series pneumatic cylinders, containing precision-engineered replacement components to restore factory performance. Features multi-material sealing systems optimized for different lubrication conditions (oil-free/oil-mist environments). Kit organization follows sequential disassembly order with color-coded compartments.
- Preventive maintenance in automotive assembly line actuators
- Overhaul of packaging machinery cylinder banks
- Field repair of material handling systems in logistics centers
- Rebuilding contaminated cylinders in food processing plants
Maintenance protocol:
Always degrease components with isopropyl alcohol before installation.
Use torque-controlled tools (3-5Nm max) for fastener reassembly.
Perform 50-100 test cycles before returning to service.
| Property | Property Value |
|---|---|
| sku | P-SDAT80-R1 |
