Airtac P-SGD-R1 Repair Kit P-SGD250-R1
AirTAC P-SGD-R1 Series Repair Kit (P-SGD250-R1) Specifications
- Model: P-SGD250-R1
- Compatible Cylinder Series: SGD-Ø25 (25mm bore size)

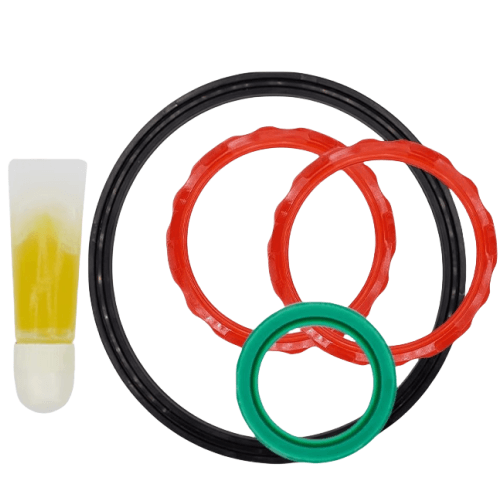

- Package Contents:
- Piston seals (NBR/PU variants)
- Rod seals (double-lip design)
- Wear bands (glass fiber reinforced)
- O-rings (AS568 standard sizes)
- Cushion rings & buffer components
- Anti-extrusion rings
- Material Compatibility:
- Seals: Nitrile Rubber (NBR) / Polyurethane (PU)
- Backup Rings: PTFE composite
- Lubrication: Grease-impregnated components
- Temperature Range: -30℃ to 100℃ (NBR) / -10℃ to 80℃ (PU)
- Pressure Rating: 0.05-1.0 MPa (operational)
- Weight: 280g ±5g (complete kit)
- Package Dimensions: 150mm(L) × 90mm(W) × 25mm(H)
- Storage Life: 5 years in original packaging
- Certification: ISO 9001 & RoHS compliant
Comprehensive maintenance solution for SGD series compact cylinders, containing precision-matched components to restore factory-level performance. Features wear-resistant materials optimized for high-cycle applications, with dual-material options (NBR for general use/PU for abrasive environments). Includes corrosion-inhibited packaging for long-term storage stability.
- Preventive maintenance in automated assembly lines
- Overhaul of packaging machinery actuators
- Rehabilitation of CNC machine tool cylinders
- Maintenance of food processing pneumatic systems (requires additional cleaning)
- Replacement cycle: Every 5 million cycles or 2 years (whichever comes first)
Maintenance protocol:
Disassemble cylinder in ISO Class 7 clean environment. Clean all metal parts with
non-petroleum solvent before installation. Apply pneumatic-specific grease
(ISO VG 32 equivalent) to sliding surfaces. Torque end caps to 12-15N·m.
| Property | Property Value |
|---|---|
| sku | P-SGD250-R1 |
