Airtac P-TN Repair Kit P-TN25-R2
$12.78
Regular price
$20.28
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
P-TN25-R2
Product type:
Tags:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
Product Category: Pneumatic Cylinder Seal Repair Kits
Brand: Airtac
Series: P-TN
Engineered for precision maintenance of pneumatic systems, Airtac P-TN Series Seal Repair Kits contain OEM-grade sealing components including wear bands, piston seals, and rod seals. Designed specifically for P-TN cylinder series, these kits ensure leak-free operation and extended service life in industrial automation applications. Compliant with ISO 6431 standards for dimensional compatibility and performance reliability.
Installation protocol:
Clean cylinder bore with alcohol-based solvent (no petroleum distillates)
and use dedicated seal installation tools (AIRTAC PN: T-098)
to prevent lip damage during reassembly.
AirTAC P-TN25-R2 Cylinder Repair Kit Technical Details
- Kit code: P-TN25-R2
- Compatible series: TN series compact cylinders (TN16-TN32)

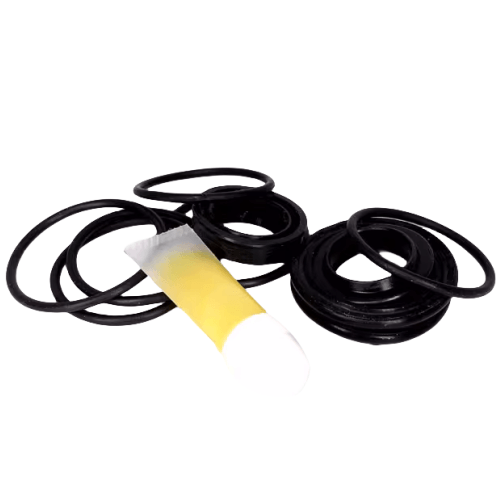

- Seal types included: Piston seals, rod seals, wipers, cushion rings
- Material composition: NBR (Nitrile) & PU (Polyurethane) components
- Temperature tolerance: -20℃ to 80℃
- Pressure rating: 0.05-1.0 MPa
- Total components: 18 pieces
- Weight: 120g ±5% (unpacked)
- Package dimensions: 80mm(L) × 40mm(W) × 15mm(H)
- Storage conditions: Dry environment below 40℃, avoid UV exposure
- Compliance: RoHS 2011/65/EU compliant
Complete maintenance solution for TN series cylinders, containing all wear-prone seals and precision-machined backup rings. Features anti-extrusion designs with reinforced lip geometry for high pulse resistance. Kit components are vacuum-sealed in anti-static packaging with desiccant.
Recommended Applications:
- Preventive maintenance for automated assembly line actuators
- Overhauling pneumatic clamping units in CNC machinery
- Rebuilding material handling cylinder banks
- Restoring medical equipment pneumatic actuators
Installation protocol:
Clean cylinder bore with alcohol-based solvent (no petroleum distillates)
and use dedicated seal installation tools (AIRTAC PN: T-098)
to prevent lip damage during reassembly.
Cross-reference: Interchangeable with SMC CQ2 series repair kits
when using adapter shim (0.2mm thickness required)
| Property | Property Value |
|---|---|
| sku | P-TN25-R2 |
