Airtac P-TN Repair Kit P-TN32-R2
$14.38
Regular price
$21.88
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
P-TN32-R2
Product type:
Tags:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
Product Category: Pneumatic Cylinder Seal Repair Kits
Brand: Airtac
Series: P-TN
Engineered for precision maintenance of pneumatic systems, Airtac P-TN Series Seal Repair Kits contain OEM-grade sealing components including wear bands, piston seals, and rod seals. Designed specifically for P-TN cylinder series, these kits ensure leak-free operation and extended service life in industrial automation applications. Compliant with ISO 6431 standards for dimensional compatibility and performance reliability.
Rebuild protocol:
Always replace entire seal set (partial replacement causes uneven wear).
Use torque-controlled assembly: 0.8-1.2Nm for end caps, 2.5Nm max for rod nuts.
AirTAC P-TN32-R2 Cylinder Repair Kit Technical Details
- Kit code: P-TN32-R2
- Compatible series: TN32 standard/compact cylinders
- Material composition: NBR seals (70±5 Shore A), SUS304 stainless steel springs
- Pressure range: 0.05–1.0 MPa
- Temperature tolerance: -20℃ to 80℃ (continuous), 120℃ peak (short-term)

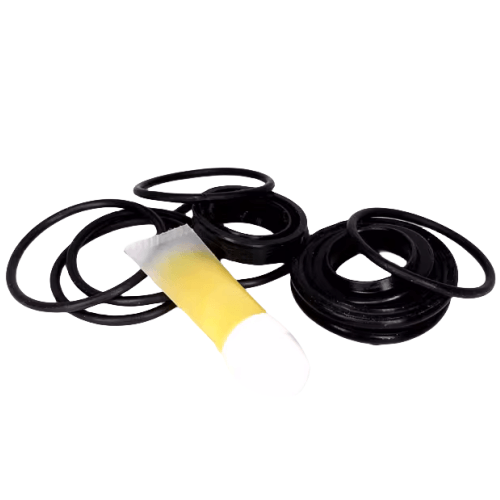

- Contains 23 components: Piston seals, rod seals, wear bands, O-rings, cushion rings
- Seal hardness: 90±5 IRHD (dynamic components)
- Lubrication: Pre-lubed with PAG grease (Molykote EM-50L equivalent)
- Weight: 250g ±5% (including packaging)
- Package dimensions: 150mm × 80mm × 25mm (foam-secured tray)
- Shelf life: 5 years in original packaging (25℃/60% RH)
Complete overhaul kit for TN32 series cylinders, containing wear-resistant components optimized for high-cycle applications. Features dual-lipped rod seals with integrated wiper function and low-friction PTFE blend piston rings. Compatible with ISO 6432 mounting dimensions.
Implementation Guide:
- Preventive maintenance: Replace every 500,000 cycles in clean environments
- Corrective maintenance: Address air leakage >15% of normal consumption
- Retrofit upgrade: Use with TN32-***-PTFE models for reduced stick-slip
- Multi-cylinder service: Each kit services 1 cylinder (double-acting models)
Rebuild protocol:
Always replace entire seal set (partial replacement causes uneven wear).
Use torque-controlled assembly: 0.8-1.2Nm for end caps, 2.5Nm max for rod nuts.
| Property | Property Value |
|---|---|
| sku | P-TN32-R2 |
