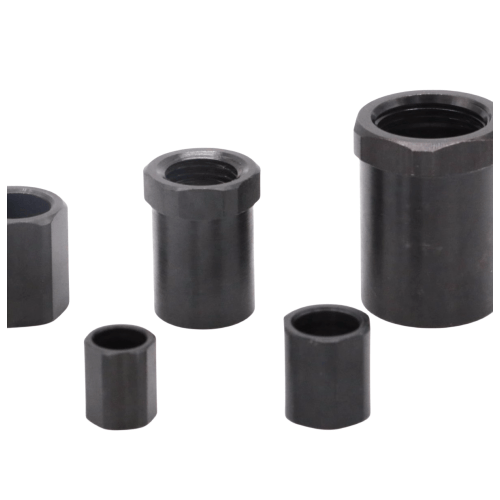

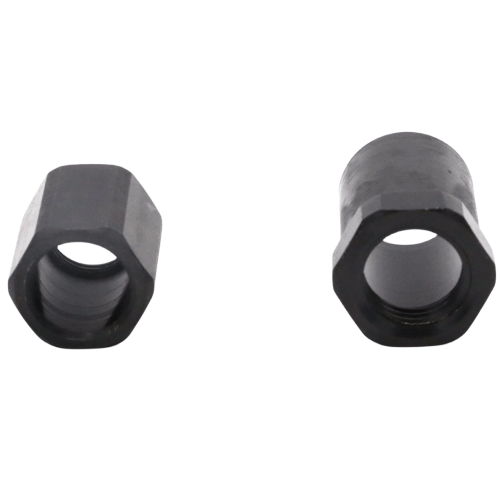

Airtac F-ACA-LM Positioning Stop Nut Assembly Kit F-ACA08LM
AirTAC F-ACA-LM Positioning Stop Nut Kit F-ACA08LM Technical Details
- Full model designation: F-ACA08LM (Complete assembly kit)
- Thread specification: M8×1.25 precision ground
- Material composition: Stainless steel (SUS304) nut with chrome-plated steel lock plate
- Hex size: 13mm wrench flat
- Maximum torque capacity: 18 N·m
- Locking mechanism: Spring-loaded ball detent with nylon locking patch
- Temperature tolerance: -30℃ to 120℃
- Surface treatment: Electroless nickel plating (3-5μm thickness)
- Radial play: ≤0.05mm
- Axial load capacity: 1,200N (static), 800N (dynamic)
- Weight: 32g ±1g (complete assembly)
- Dimensions: 22mm(Ø) × 19.5mm(H) (excluding threaded portion)
- Thread engagement length: 12mm
- Compatible series: ACA-08 linear guide actuators
- Vibration resistance: 5-2000Hz, 15m/s² max
Precision-engineered mechanical stop solution for repeatable positioning in linear motion systems. Features dual-phase locking with both mechanical detent and chemical adhesive retention. The tapered seat design ensures perpendicular alignment during installation. Includes pre-applied medium-strength thread locker (LOCTITE 243 equivalent).
- End-of-stroke adjustment for pneumatic cylinders in pick-and-place robots
- Z-axis depth control in CNC tool changers
- Modular fixture positioning in automotive welding jigs
- Over-travel protection for packaging machine actuators
- Repeatable calibration points in semiconductor handling equipment
Installation protocol:
Clean mating threads with isopropyl alcohol before assembly. Torque to 12-14 N·m using
calibrated wrench. Allow 24hr cure time for full locking compound effectiveness.
Re-torque after 10 operational cycles.
| Property | Property Value |
|---|---|
| sku | F-ACA08LM |
| Internal Thread Specification | M8 |
