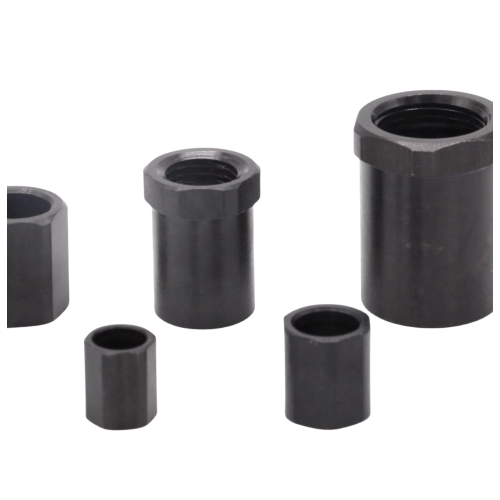

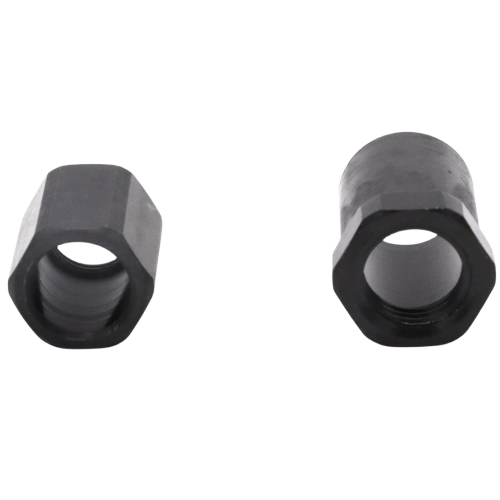

Airtac F-ACA-LM Positioning Stop Nut Assembly Kit F-ACA12LM
AirTAC F-ACA-LM Positioning Stop Nut Kit F-ACA12LM Technical Details
- Full Model: F-ACA12LM (Complete Kit)
- Type: Locking-type adjustable stopper with cushioning
- Material: Steel base + Aluminum alloy stopper
- Thread Specification: M12×1.25 (ISO metric fine thread)
- Compatible Cylinder Series: ADA/ACQ/SCA 12mm bore
- Max Torque Capacity: 6.8 N·m (with anti-loosening lock nut)
- Surface Treatment: Black oxide coating (corrosion resistant)
- Operating Temperature: -20℃ to 100℃ (continuous duty)
- Vibration Resistance: ≤10 m/s² (with locking mechanism engaged)
- Weight: 32g ±2g (including all kit components)
- Dimensions:
- Total Length: 24mm (from base to tip)
- Hex Size: 17mm AF (wrench engagement surface)
- Stopper Diameter: φ12.5mm (precision ground surface)
- Thread Length: 10mm (effective engagement length)
- Included Components: Stop nut (1pc), Lock nut (1pc), Cushion washer (2pcs)
Precision-engineered positioning solution featuring dual-stage locking with integrated shock absorption. The zinc-nickel plated steel base ensures thread durability during repeated adjustments, while the anodized aluminum contact surface prevents cylinder rod scoring. Includes anti-vibration washers for noise reduction in high-cycle applications.
- Step 1: Thread onto cylinder rod end with 4-6 N·m torque
- Step 2: Secure with included lock nut using counter-torque method
- Step 3: Adjust position with 2mm hex key (access port on side)
- Ideal for: CNC tool changers, Semiconductor handler Z-axis stops, Pick-and-place unit overtravel protection
- Specialty Use: Cleanroom environments (passes ISO Class 5 particle test)
Maintenance Tip:
Apply MIL-G-23827 grease every 50,000 cycles. Replace cushion washers when wear exceeds 0.3mm.
Avoid brass hammers during adjustment - use plastic-faced mallet only.
| Property | Property Value |
|---|---|
| sku | F-ACA12LM |
| Internal Thread Specification | M12 |
