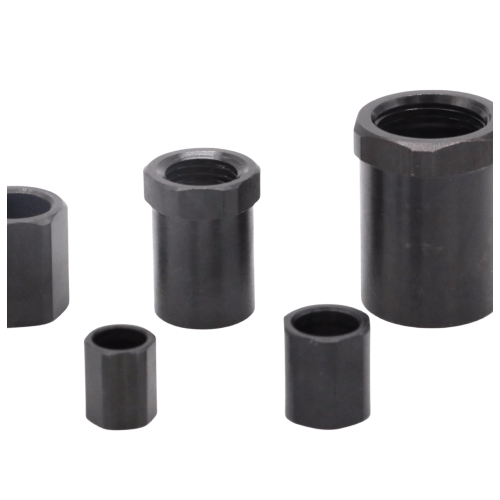

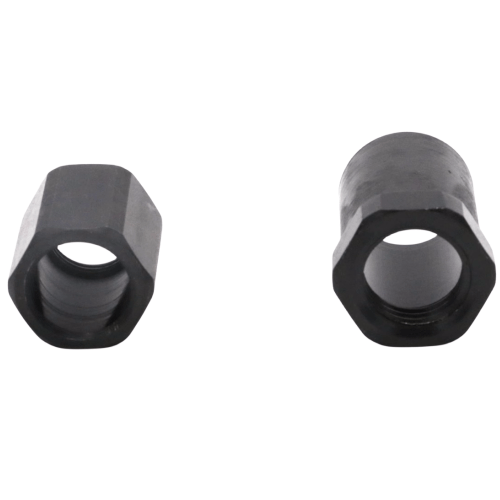

Airtac F-ACA-LM Positioning Stop Nut Assembly Kit F-ACA20LM
AirTAC F-ACA-LM Positioning Stop Nut Kit F-ACA20LM Technical Details
- Full model designation: F-ACA20LM (Complete Kit)
- Thread specification: M20×1.5 metric fine thread
- Material composition: SCr420 alloy steel body + S55C steel locknut
- Surface treatment: Black oxide coating with anti-rust oil protection
- Axial load capacity: 3,200N static / 2,100N dynamic
- Radial load limit: 1,800N (at 10mm from base)
- Repeat positioning accuracy: ±0.02mm
- Installation torque: 45-55N·m (main nut), 25-35N·m (locknut)
- Temperature tolerance: -30℃ to 120℃ (continuous operation)
- Vibration resistance: 10-2000Hz, 5G acceleration
- Weight: 218g ±5g (complete assembly)
- Dimensions: 34mm(Ø) × 42.5mm(H) (excluding thread protrusion)
- Thread engagement length: 28mm (minimum recommended)
- Package contents: (1) Main positioning nut, (1) Locknut, (2) Hex keys
Precision-ground stop nut system with dual locking mechanism, featuring wear-compensating threads and anti-backlash design. The staggered dual-nut configuration eliminates axial play while maintaining smooth adjustability. Hardness graded at 58-62HRC for thread surfaces ensures 50,000+ cycle durability under ISO 3408-3 testing standards.
- Linear guide end-stop calibration in CNC machining centers
- Z-axis height limitation in 3D printing/Pick-and-place machines
- Modular fixture positioning for automotive welding jigs
- Safety overtravel prevention in hydraulic cylinder rods
- Repeatable stage positioning for semiconductor handlers
Mounting protocol:
Apply Molykote G-5002 lubricant to threads before installation.
Tighten main nut to 50N·m using torque wrench, then secure locknut
at 30N·m while holding main nut stationary. Re-torque after 24hrs runtime.
| Property | Property Value |
|---|---|
| sku | F-ACA20LM |
| Internal Thread Specification | M20 |
