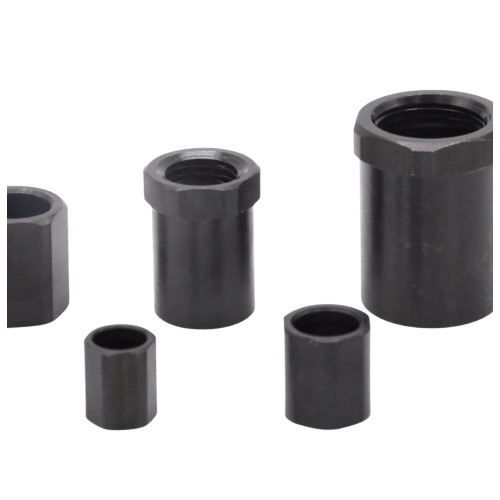

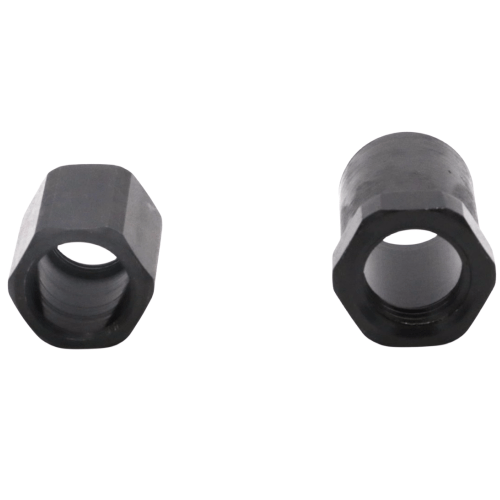

Airtac F-ACA-LM Positioning Stop Nut Assembly Kit F-ACA25LM
AirTAC F-ACA-LM Positioning Stop Nut Kit F-ACA25LM Technical Details
- Full model designation: F-ACA25LM
- Product type: Precision adjustable stopper assembly
- Material composition: Aluminum alloy body + Stainless steel (SUS304) contact surfaces
- Surface treatment: Hard anodized (black) with anti-corrosion coating
- Compatible cylinder series: MY1/MK/MF/MH series guide cylinders
- Mounting hole specification: M5 threaded fastening
- Thread specification: M6×1.0 precision ground
- Maximum allowable moment:
- Dynamic: 0.5 N·m
- Static: 1.2 N·m
- Operating temperature range: -20℃ to 80℃
- Weight: 22g ±0.5g (including all mounting hardware)
- Dimensions: 25mm(L) × 25mm(W) × 12mm(H)
- Vibration resistance: 10-55Hz, 1.5mm double amplitude
- Repeat positioning accuracy: ±0.02mm
Engineered for micrometer-level positioning in linear motion systems, this stop nut kit features dual locking mechanisms (radial set screw + axial clamp) for vibration-resistant operation. The hardened contact surfaces withstand over 50,000 impact cycles while maintaining dimensional stability. Includes pre-installed O-ring (NBR material) for dust prevention.
- Precision stroke adjustment in SMT component placement machines
- End-of-arm tooling position calibration for robotic actuators
- Modular conveyor system hard stops
- Medical imaging equipment sliding mechanisms
- Semiconductor wafer handling stage limiters
Mounting protocol:
Apply 2-3Nm torque using calibrated wrench during installation.
Lubricate threads with silicone-free grease (Molykote EM-30L recommended).
Perform concentric alignment check after 24hrs of initial operation.
| Property | Property Value |
|---|---|
| sku | F-ACA25LM |
| Internal Thread Specification | M25 |
