Airtac F-HGS-J Stroke Adjustment Screw F-HGS10X15J
$32.53
Regular price
$40.03
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
F-HGS10X15J
Product type:
Collections:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description

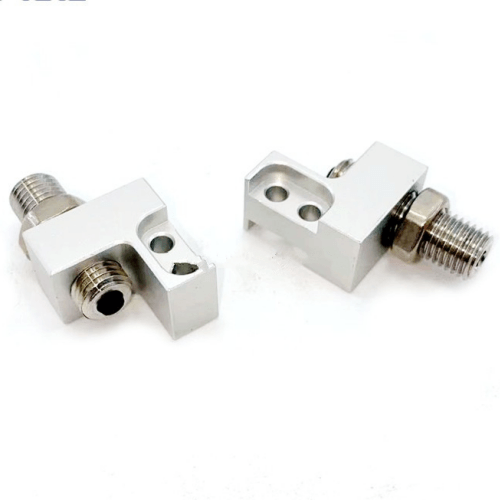

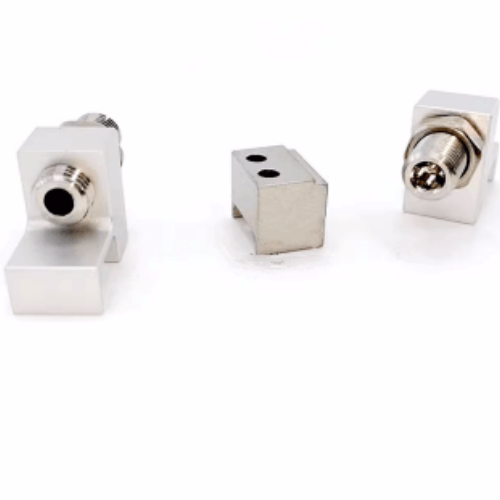

F-HGS-J Stroke Adjustment Screw Set
Category: Magnetic Sensors | Brand: AirTAC | Series: F-HGS-J [Professional Note: This finished screw set is designed for precise stroke calibration in pneumatic systems, compatible with F-HGS-J series magnetic switches. Features hardened steel construction with anti-corrosion treatment, ensuring durability and repeatable adjustment accuracy in industrial automation applications.]
Installation protocol:
Apply medium-strength thread locker (Loctite 243 equivalent) to the first 3 threads.
Torque sequence: 1) Tighten base nut to 2.5 N·m 2) Adjust stroke position 3) Secure with lock nut at 1.8 N·m.
Category: Magnetic Sensors | Brand: AirTAC | Series: F-HGS-J [Professional Note: This finished screw set is designed for precise stroke calibration in pneumatic systems, compatible with F-HGS-J series magnetic switches. Features hardened steel construction with anti-corrosion treatment, ensuring durability and repeatable adjustment accuracy in industrial automation applications.]
AirTAC F-HGS-J Stroke Adjustment Screw F-HGS10X15J Technical Details
- Full Model: F-HGS10X15J
- Series: HGS-J precision adjustment series
- Material: Carbon steel (SCM435 equivalent)
- Surface treatment: Black oxide coating (5-8μm)
- Thread specification: M10×1.25 (external thread)
- Adjustment stroke: 15mm ±0.5mm
- Rotation torque: 0.8-1.5 N·m (recommended)
- Locking nut included: M10 stainless steel hex nut
- Drive type: Hex socket (5mm Allen key drive)
- Temperature range: -20℃ to +120℃
- Vibration resistance: ≤10 m/s² (ISO 2373)
- Weight: 48g ±2g (including locking nut)
- Dimensions: Ø10mm × 40mm(L) (threaded portion 25mm)
Precision-ground stroke limiter with anti-backlash design, featuring hardened contact surfaces (HRC 45-50) for repetitive positioning accuracy. The knurled grip surface provides tactile feedback during manual adjustments. Compatible with ISO 4029 metric thread standards.
Typical Applications:
- Cylinder stroke end-point calibration
- CNC machine tool limit adjustment
- Conveyor belt tensioning mechanisms
- Robotic arm position hard stops
- Die casting machine mold protection
Installation protocol:
Apply medium-strength thread locker (Loctite 243 equivalent) to the first 3 threads.
Torque sequence: 1) Tighten base nut to 2.5 N·m 2) Adjust stroke position 3) Secure with lock nut at 1.8 N·m.
| Property | Property Value |
|---|---|
| sku | F-HGS10X15J |
| Bore Diameter | <10mm> |
| Stroke | <15mm> |
