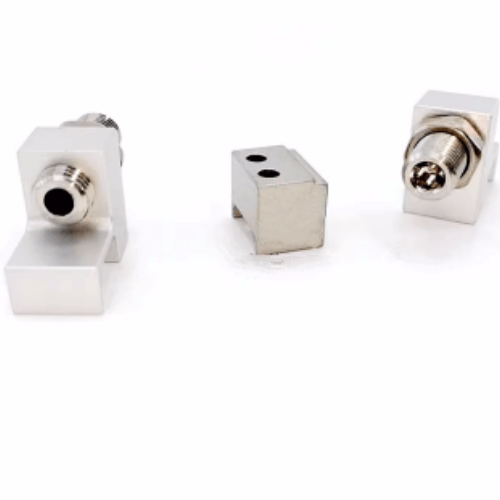

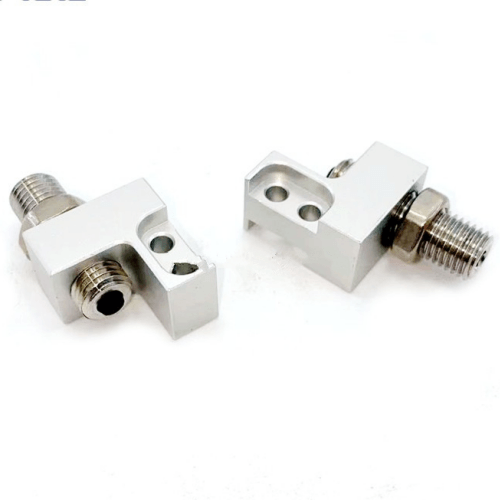

Airtac F-HGS-J Stroke Adjustment Screw F-HGS10X5J
Category: Magnetic Sensors | Brand: AirTAC | Series: F-HGS-J [Professional Note: This finished screw set is designed for precise stroke calibration in pneumatic systems, compatible with F-HGS-J series magnetic switches. Features hardened steel construction with anti-corrosion treatment, ensuring durability and repeatable adjustment accuracy in industrial automation applications.]
AirTAC F-HGS-J Stroke Adjustment Screw F-HGS10X5J Technical Details
- Full model designation: F-HGS10X5J
- Thread specification: M10×1.25 (metric fine thread)
- Effective adjustment range: 0-5mm (±0.1mm precision)
- Material composition: SCM435 alloy steel (chrome-molybdenum)
- Surface treatment: Black oxide coating (8-12μm thickness)
- Installation torque: 14.7-19.6N·m (using 17mm wrench)
- Locknut type: Hex flange nut M8 (included)
- Temperature tolerance: -30℃ to +120℃
- Vibration resistance: ≤15Hz frequency, 1.5mm amplitude
- Weight: 48g ±2g (including locknut)
- Dimensions: 52mm(L) × 18mm(Ø) × 18mm(adjustment head width)
- Hardness rating: 32-38HRC surface hardness
- Corrosion resistance: 96hr neutral salt spray test compliant
Precision-ground stroke limiter with dual-stage locking mechanism, featuring wear-resistant chromium oxide coating for repeated calibration cycles. The reverse-threaded collar prevents accidental loosening under vibration, with laser-etched calibration marks for visual position verification. Compatible with ISO 15407-1 standard pneumatic cylinders.
- Plastic injection molding machine ejection stroke control
- CNC rotary table positioning limit adjustment
- Automated conveyor stopper synchronization
- Textile machinery thread tension calibration
- Robotic welding arm overtravel protection
Installation protocol:
Apply MOBILUX EP2 grease to threads before initial use.
Always back off 1/4 turn from target position before final tightening
to eliminate thread binding. Re-torque after 50 operating cycles.
- AirTAC HOB series compact cylinders
- ISO 6432 standard bore cylinders
- Magnetic reed switch brackets (F-M9SW type)
| Property | Property Value |
|---|---|
| sku | F-HGS10X5J |
| Bore Diameter | <10mm> |
| Stroke | <5mm> |
