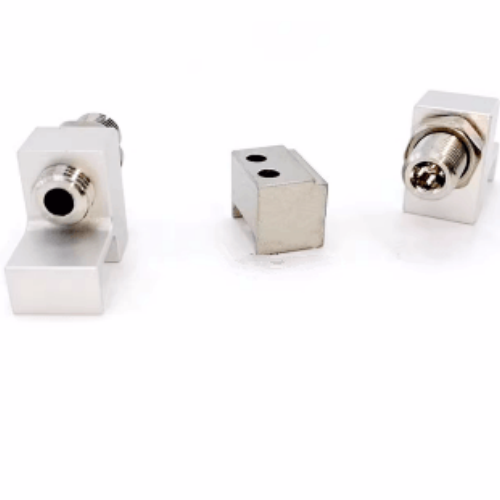

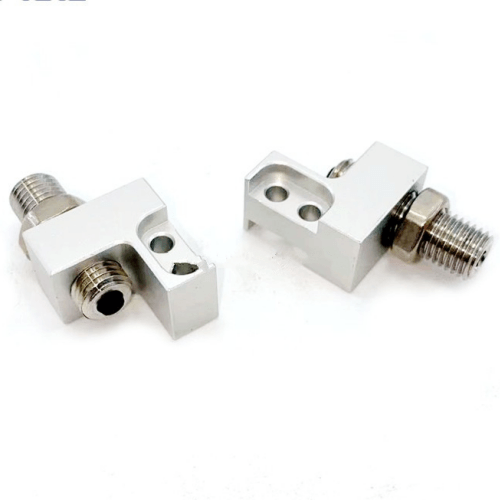

Airtac F-HGS-J Stroke Adjustment Screw F-HGS6X10J
Category: Magnetic Sensors | Brand: AirTAC | Series: F-HGS-J [Professional Note: This finished screw set is designed for precise stroke calibration in pneumatic systems, compatible with F-HGS-J series magnetic switches. Features hardened steel construction with anti-corrosion treatment, ensuring durability and repeatable adjustment accuracy in industrial automation applications.]
AirTAC F-HGS-J Stroke Adjustment Screw F-HGS6X10J Technical Details
- Model: F-HGS6X10J (HGS Series)
- Type: Fine-pitch stroke limiter with locknut
- Material: Case-hardened carbon steel SCr420
- Thread specification: M6×1.0 precision ground
- Effective adjustment range: 0-10mm (±0.2mm repeatability)
- Mounting style: Through-hole with dual hex nuts
- Surface treatment: Black oxide coating (5-8μm)
- Operating temperature: -30℃ to 120℃
- Weight: 18.5g ±0.3g
- Dimensions: 6mm(dia) × 35mm(total length)
- Threaded portion: 10mm
- Hex nut width: 10mm (AF=8mm)
Precision-engineered stroke adjustment component featuring anti-backlash design with self-locking nylon-insert hex nuts. The tapered tip (120° cone angle) ensures positive contact with mechanical stops. Includes phosphate coating for corrosion resistance in humid environments. Compatible with ISO 4029 standards.
- Pneumatic cylinder end-position calibration
- CNC machine tool limit switch adjustment
- Packaging equipment film tension control
- Robotic arm joint movement restriction
- Injection molding machine platen alignment
Installation protocol:
Apply medium-strength thread locker (LOCTITE 243 recommended) on lower nut before final torque setting.
Tightening torque range: 2.5-3.0N·m. Recalibrate after 50 operating cycles.
