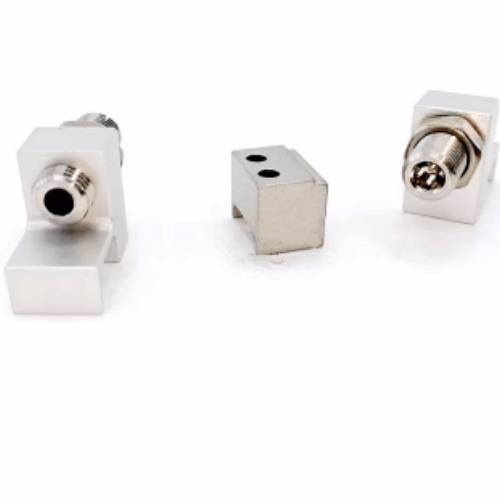

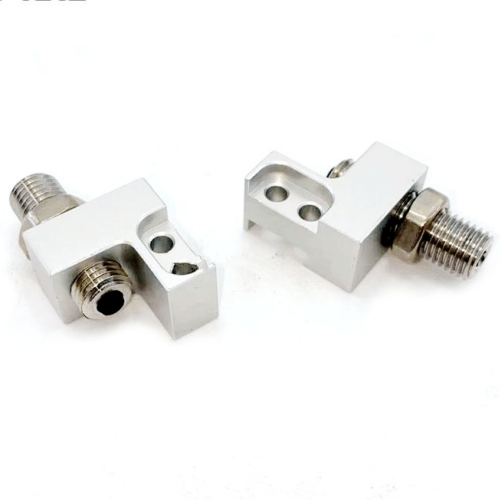

Airtac F-HGS-J Stroke Adjustment Screw F-HGS6X5J
Category: Magnetic Sensors | Brand: AirTAC | Series: F-HGS-J [Professional Note: This finished screw set is designed for precise stroke calibration in pneumatic systems, compatible with F-HGS-J series magnetic switches. Features hardened steel construction with anti-corrosion treatment, ensuring durability and repeatable adjustment accuracy in industrial automation applications.]
AirTAC F-HGS-J Series Stroke Adjustment Screw F-HGS6X5J Technical Details
- Full model designation: F-HGS6X5J
- Thread specification: M6×1 pitch (metric fine thread)
- Effective adjustment range: 0-5mm (±2.5mm bidirectional)
- Drive type: 2.5mm hex key operation
- Locking mechanism: Integrated nylon-patched lock nut
- Material composition: SCM435 alloy steel (chrome-molybdenum)
- Surface treatment: Black oxide coating (8-12μm thickness)
- Operating torque range: 0.6-1.5N·m (recommended)
- Temperature tolerance: -30℃ to +150℃
- Vibration resistance: ≤15m/s² (ISO 10816-3 compliant)
- Weight: 18.7g ±0.5g
- Dimensions: 20mm (L) × 12mm (W) × 8mm (H)
- Package contents: (1) Adjustment screw, (1) Lock washer
Precision-engineered micro-adjustment component featuring wear-resistant tapered threads and anti-backlash design. The hardened contact surface (HRC 45-50) ensures consistent positioning accuracy through repeated adjustments. Compatible with ISO 4026 hex socket head cap screw configurations.
- Servo motor-driven linear actuator end-stop calibration
- Pneumatic cylinder cushioning adjustment in pick-and-place systems
- CNC machine tool limit switch position fine-tuning
- Conveyor belt tensioning mechanism maintenance
- Robotic arm joint play compensation
Adjustment protocol:
Loosen lock nut with 8mm wrench before turning adjustment screw.
Apply thread lubricant (Molykote PG-65 recommended) every 5,000 cycles
in high-duty applications. Avoid exceeding 2N·m torque to prevent thread deformation.
| Property | Property Value |
|---|---|
| sku | F-HGS6X5J |
| Bore Diameter | <6mm> |
| Stroke | <5mm> |
