Airtac F-HGS-J Stroke Adjustment Screw F-HGS8X10J
$27.88
Regular price
$35.38
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
F-HGS8X10J
Product type:
Collections:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description

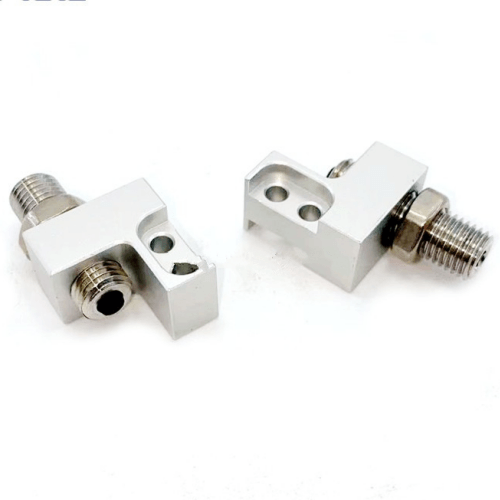

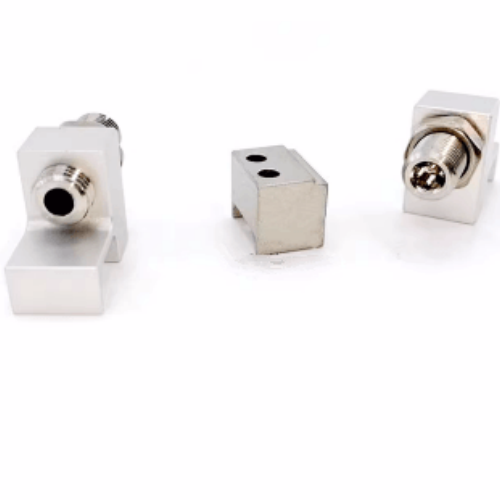

F-HGS-J Stroke Adjustment Screw Set
Category: Magnetic Sensors | Brand: AirTAC | Series: F-HGS-J [Professional Note: This finished screw set is designed for precise stroke calibration in pneumatic systems, compatible with F-HGS-J series magnetic switches. Features hardened steel construction with anti-corrosion treatment, ensuring durability and repeatable adjustment accuracy in industrial automation applications.]
Installation protocol:
Apply MOS2-based grease to threads before initial use.
Tighten counter-nut clockwise while holding screw position.
Re-torque after 50 operating cycles. Avoid overtightening beyond 1.2N·m.
Category: Magnetic Sensors | Brand: AirTAC | Series: F-HGS-J [Professional Note: This finished screw set is designed for precise stroke calibration in pneumatic systems, compatible with F-HGS-J series magnetic switches. Features hardened steel construction with anti-corrosion treatment, ensuring durability and repeatable adjustment accuracy in industrial automation applications.]
AirTAC F-HGS-J Stroke Adjustment Screw F-HGS8X10J Technical Details
- Model: F-HGS8X10J (J-Series Fine Adjustment Type)
- Thread Specification: M8×1.25 pitch
- Effective Adjustment Stroke: 10±0.5mm
- Total Length: 38mm
- Material: Carbon steel with nickel plating (surface hardness HV500±50)
- Locking Torque: 0.5-0.7 N·m (recommended)
- Max Lateral Load Capacity: 150N
- Weight: 24.8g ±0.5g
- Dimensions: 38mm(L) × 8mm(Thread Ø) × 13mm(Hex Head Width)
- Surface Treatment: Electro-galvanized with yellow chromate
- Temperature Range: -10℃ to 80℃ (continuous use)
- Vibration Resistance: ≤15Hz frequency, 1.5mm amplitude
Precision micro-adjustment screw with graduated scale (0.5mm per division) for millimeter-level positioning. Features dual-stage locking: primary hex nut with secondary anti-loosening flange. Compatible with ISO 4029 standards for metric adjusters.
Typical Applications:
- Pneumatic cylinder stroke fine-tuning in SMT equipment
- Clamping force adjustment in injection molding dies
- Z-axis calibration for CNC tooling fixtures
- Conveyor belt tensioning mechanisms
- Optical lens positioning systems
Installation protocol:
Apply MOS2-based grease to threads before initial use.
Tighten counter-nut clockwise while holding screw position.
Re-torque after 50 operating cycles. Avoid overtightening beyond 1.2N·m.
| Property | Property Value |
|---|---|
| sku | F-HGS8X10J |
| Bore Diameter | <8mm> |
| Stroke | <10mm> |
