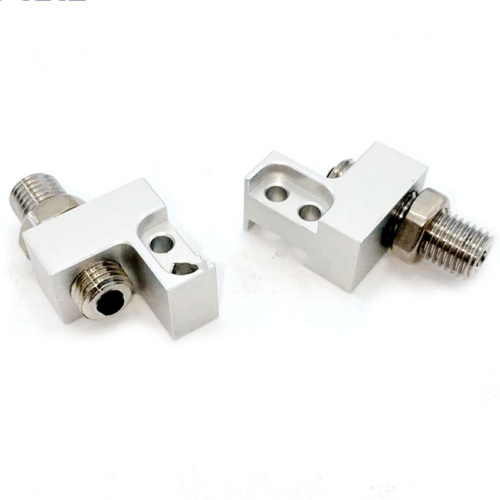

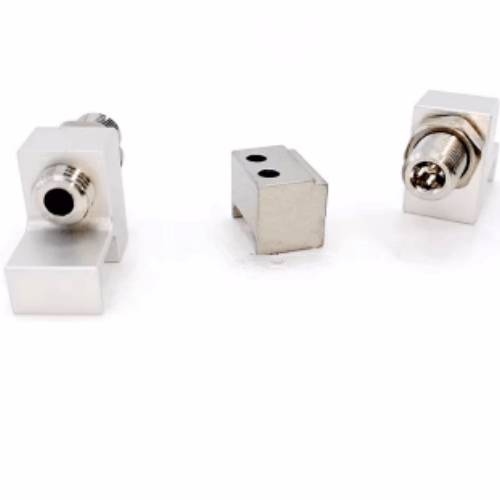

Airtac F-HGS-J Stroke Adjustment Screw F-HGS8X15J
Category: Magnetic Sensors | Brand: AirTAC | Series: F-HGS-J [Professional Note: This finished screw set is designed for precise stroke calibration in pneumatic systems, compatible with F-HGS-J series magnetic switches. Features hardened steel construction with anti-corrosion treatment, ensuring durability and repeatable adjustment accuracy in industrial automation applications.]
AirTAC F-HGS-J Series Stroke Adjustment Screw F-HGS8X15J Technical Details
- Full model: F-HGS8X15J
- Type: Precision stroke adjustment screw with locknut
- Thread specification: M8×1.25 (metric fine thread)
- Effective adjustment length: 15mm (±0.2mm)
- Material composition: S45C steel body + SUS304 locknut
- Surface treatment: Nickel plating (3-5μm thickness)
- Maximum torque: 12 N·m (recommended 8-10 N·m)
- Temperature tolerance: -30℃ to 120℃
- Weight: 22g ±0.5g (including locknut)
- Dimensions:
- Total length: 38mm
- Hexagon size: 12mm AF
- Thread protrusion: 15mm (adjustable range)
- Base diameter: 14mm
High-precision mechanical stop component designed for micrometer-level position control in pneumatic systems. Features dual-stage locking with integrated jam nut for vibration resistance. The knurled contact surface (Ra 3.2μm finish) ensures stable positioning while preventing component damage during impact.
- Cylinder stroke fine-tuning in SMT assembly robots
- Mechanical hard stops for CNC tool changers
- Over-travel protection in injection molding ejectors
- Position calibration in automated test fixtures
- Z-axis depth control in PCB drilling machines
Maintenance advisory:
Apply MOBILUX EP2 grease quarterly on threads when used in high-cycle
applications (>50,000 cycles/day). Avoid overtightening - torque values
exceeding 14N·m may deform actuator mounting threads.
| Property | Property Value |
|---|---|
| sku | F-HGS8X15J |
| Bore Diameter | <8mm> |
| Stroke | <15mm> |
