Airtac F-HGS-J Stroke Adjustment Screw F-HGS8X5J
$27.88
Regular price
$35.38
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
F-HGS8X5J
Product type:
Collections:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description

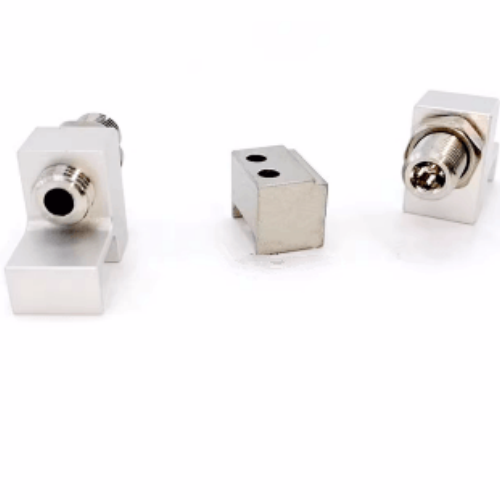

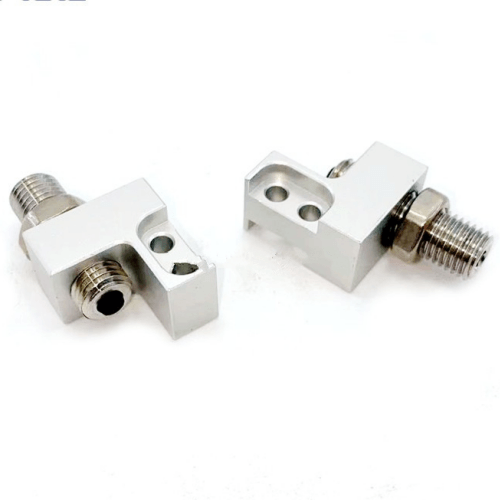

F-HGS-J Stroke Adjustment Screw Set
Category: Magnetic Sensors | Brand: AirTAC | Series: F-HGS-J [Professional Note: This finished screw set is designed for precise stroke calibration in pneumatic systems, compatible with F-HGS-J series magnetic switches. Features hardened steel construction with anti-corrosion treatment, ensuring durability and repeatable adjustment accuracy in industrial automation applications.]
Installation protocol:
Apply thread-locking compound (medium strength) to M8 threads before assembly.
Torque locknut to 1.8N·m ±10% after adjustment. Perform bi-annual lubrication
of adjustment threads using ISO VG32 hydraulic oil.
Category: Magnetic Sensors | Brand: AirTAC | Series: F-HGS-J [Professional Note: This finished screw set is designed for precise stroke calibration in pneumatic systems, compatible with F-HGS-J series magnetic switches. Features hardened steel construction with anti-corrosion treatment, ensuring durability and repeatable adjustment accuracy in industrial automation applications.]
AirTAC F-HGS-J Series Stroke Adjustment Screw F-HGS8X5J Technical Details
- Model: F-HGS8X5J
- Series: HGS-J precision adjustment series
- Material: Carbon steel with zinc plating (stainless steel variant available)
- Thread size: M8×1.25 (metric fine thread)
- Stroke adjustment range: 0-5mm (±0.1mm precision)
- Rotation torque: 0.5-1.2N·m (recommended installation torque)
- Surface treatment: Zinc-nickel composite coating (12μm min thickness)
- Temperature resistance: -20℃ to 120℃ continuous operation
- Weight: 24.5g ±0.3g
- Dimensions: 40mm(Total L) × 8mm(Dia.) × 5mm(Adjustment range)
- Locknut included: M8 stainless steel jam nut (material SUS304)
- Vibration resistance: 10-55Hz, 1.5mm amplitude (IEC 60068-2-6)
Precision-ground stroke limiter with dual anti-rotation grooves, featuring laser-etched scale markings for micrometer-level adjustments. The chromium-enhanced surface treatment provides IP54 equivalent corrosion resistance. Includes integrated O-ring (NBR 70°) for vibration dampening.
Implementation Guide:
- Pneumatic cylinder stroke calibration in SMC-type actuators
- CNC machine tool overtravel protection adjustment
- Conveyor system stopper position fine-tuning
- Packaging machine plunger depth control
- Robotic end effector positioning calibration
Installation protocol:
Apply thread-locking compound (medium strength) to M8 threads before assembly.
Torque locknut to 1.8N·m ±10% after adjustment. Perform bi-annual lubrication
of adjustment threads using ISO VG32 hydraulic oil.
Matched Components:
- AirTAC HMI series guide blocks
- MGP series mini guide pillars
- ACQ2 series compact cylinders
| Property | Property Value |
|---|---|
| sku | F-HGS8X5J |
| Bore Diameter | <8mm> |
| Stroke | <5mm> |
