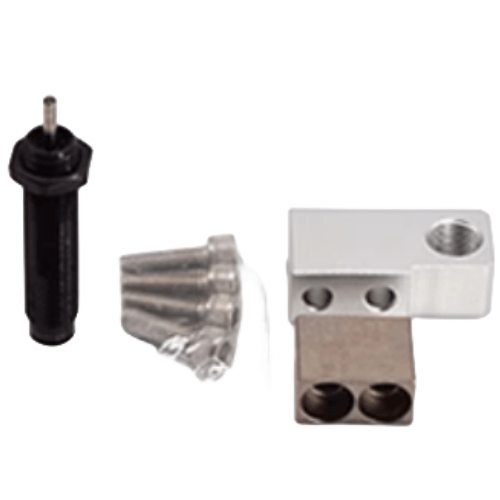

Airtac F-HLQ-BS Front End with Hydraulic Cushion Complete Assembly F-HLQ12BS
AirTAC F-HLQ-BS Series Front-Mounted Hydraulic Shock Absorber Kit: F-HLQ12BS
- Model: F-HLQ12BS
- Type: Front-mounted hydraulic buffer with pre-assembled adapter
- Max. Impact Energy: 1.8 Joules/cycle
- Max. Impact Velocity: 1.5 m/s
- Buffer Stroke: 12 mm
- Shaft Diameter: Ø12 mm
- Material: Stainless steel piston rod, Aluminum alloy body
- Seal Material: HNBR (Hydrogenated Nitrile)
- Operating Temp: -20℃ to +80℃
- Viscosity Grade: ISO VG15 hydraulic oil
- Mounting: M12×1.75 threaded front connection
- Weight: 0.85 kg (with oil)
- Dimensions: 80mm(L) × 40mm(W) × 40mm(H)
- Surface Treatment: Hard anodized (body), Chrome-plated (rod)
- Repeat Accuracy: ±0.5mm
- Protection Rating: IP67
This complete hydraulic damper unit combines precision energy absorption with front-mount convenience, featuring adjustable cushioning force via integrated needle valve control. The dual-chamber design prevents oil leakage during high-frequency operation, while its self-compensating seal structure maintains consistent performance over 2 million cycles. Includes pre-filled temperature-stable hydraulic fluid.
- Robotic arm end-of-stroke deceleration
- High-speed linear slide stopping mechanisms
- Press machine ram braking systems
- Automated packaging equipment impact absorption
- CNC tool changer positioning buffers
Installation protocol:
Mount perpendicular to impact direction using included anti-vibration washers.
Perform 10-15 test strokes before full operation. Adjust damping force clockwise
using 3mm hex key (included) - ¼ turn increases resistance by 15%.
| Property | Property Value |
|---|---|
| sku | F-HLQ12BS |
| Bore Diameter | 12mm |
