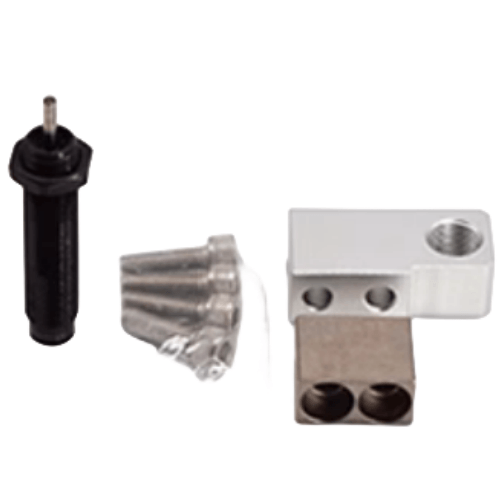

Airtac F-HLQ-BS Front End with Hydraulic Cushion Complete Assembly F-HLQ16BS
AirTAC F-HLQ-BS Series Front-Mounted Hydraulic Shock Absorber Kit (F-HLQ16BS)
- Model: F-HLQ16BS
- Type: Front-mounted oil hydraulic buffer with pre-assembled mounting accessories
- Maximum impact energy: 0.6 N·m/stroke
- Effective stroke: 16mm ±2mm
- Piston rod diameter: Ø12mm
- Buffering force adjustment: Fixed type (pre-set damping)
- Operating temperature: -10℃ to 80℃
- Material:
- Cylinder body: Stainless steel SUS304
- Piston rod: Chrome-plated steel
- Seals: NBR oil-resistant rubber
- Mounting orientation: Horizontal or vertical installation supported
- Weight: 0.52kg ±3% (including mounting hardware)
- Dimensions: 65mm(L) × 32mm(W) × 32mm(H) (main body)
- Accessories included:
- 2x M6x12 hex socket screws
- Anti-vibration washer set
- Mounting bracket adapter
High-precision energy absorption device designed for linear motion systems requiring controlled deceleration. Features progressive damping characteristics with temperature-compensated silicone oil (ISO VG32 equivalent) for consistent performance. Maintenance-free design with double-layered wiper seals prevents oil leakage and particle ingress.
- Industrial robot end effector impact absorption
- CNC machine tool slide rail over-travel protection
- Automated packaging equipment stopper mechanisms
- Elevator car emergency buffer systems
- Precision optical instrument stabilization platforms
Installation guidelines:
Apply thread locker (medium strength) to mounting screws. Ensure piston rod alignment within ±2° of impact direction. Perform 5-10 test strokes before full operation. Replace if oil film disappearance exceeds 50% of rod surface.
- Linear guides: HGH15/20/25/30 series
- Pneumatic cylinders: SDA/MI/MAL series (requires adapter)
- Maximum recommended impact velocity: 0.8 m/s
| Property | Property Value |
|---|---|
| sku | F-HLQ16BS |
| Bore Diameter | 16mm |
