Airtac F-HLQ-BS Front End with Hydraulic Cushion Complete Assembly F-HLQ8BS

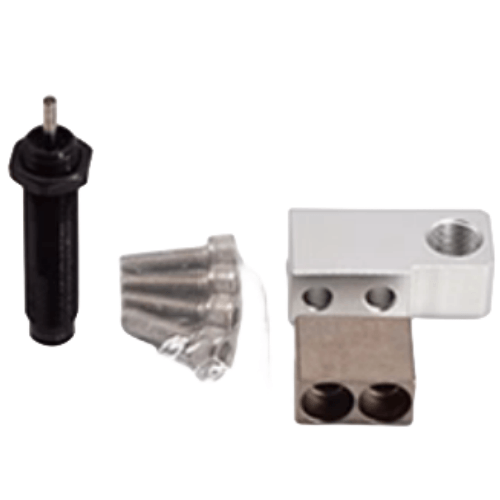

AirTAC F-HLQ-BS Series Front-Mounted Hydraulic Shock Absorber Kit (F-HLQ8BS)
- Model: F-HLQ8BS (Complete assembly with mounting accessories)
- Type: Adjustable oil hydraulic buffer with pre-installed front flange
- Max. absorption energy: 1.4 J/cycle
- Impact speed range: 0.1-1.5 m/s
- Stroke: 15 mm ±2mm
- Piston rod material: Chrome-plated steel (HRC 45-50)
- Seal material: Nitrile rubber (NBR) + Polyurethane (PU)
- Operating temperature: -10℃ to 80℃
- Oil viscosity: ISO VG 32 hydraulic oil (pre-filled)
- Mounting: M8×1.25 threaded connection
- Weight: 0.68 kg ±3% (including mounting hardware)
- Dimensions: 78mm(L) × Φ32mm(Dia.) × 48mm(Flange width)
- Surface treatment: Electrostatic epoxy coating (RAL 5015)
- Reusability: 1 million cycles (under rated conditions)
Industrial-grade hydraulic damper engineered for precision deceleration in linear motion systems. Features temperature-compensated design with 5-stage adjustable damping force (via hex key adjustment). Maintenance-free construction with integrated dust wiper and corrosion-resistant plating. Includes stainless steel mounting brackets and anti-vibration washers.
- Pick-and-place robot end effector stabilization
- CNC tool changer impact absorption
- Packaging machine cylinder end-stop damping
- Automated conveyor sorting gates
- Die-casting machine safety door mechanisms
Installation protocol:
Align buffer axis within ±2° of impact direction. Perform 10-15 test strokes
before full operation. Adjust damping force clockwise for heavier loads (max 50kgf).
Re-torque mounting bolts to 12N·m after 24hrs runtime.
| Property | Property Value |
|---|---|
| sku | F-HLQ8BS |
| Bore Diameter | <8mm> |
