Airtac F-HLQL-B Front and Rear Ends with Hydraulic Shock Absorbers Complete Assembly F-HLQL16B

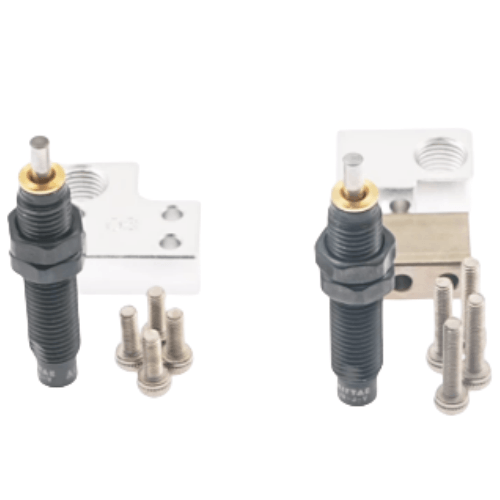

AirTAC F-HLQL-B Series Oil Hydraulic Shock Absorber with Front/Rear Mounting Kit (F-HLQL16B)
- Model: F-HLQL16B (Complete Package)
- Type: Compact oil hydraulic damper with pre-mounted brackets
- Bore size: 16mm
- Stroke range: 5-20mm (adjustable)
- Max. impact speed: 0.8-2.0 m/s
- Energy absorption: 0.25-1.2 Joules/stroke
- Operating fluid: ISO VG32 hydraulic oil
- Temperature range: -10℃ to 80℃
- Mounting orientation: Horizontal or vertical (axial load only)
- Body material: Aluminum alloy (anodized)
- Seal material: NBR with wear-resistant ring
- Weight: 320g ±5% (including brackets)
- Dimensions: 78mm(L) × 34mm(W) × 34mm(H) (excluding bracket protrusions)
- Rod thread: M8×1.25 (male)
- Surface treatment: Black electrophoretic coating
- Reusability: 500,000 cycles (with regular oil replenishment)
Self-contained hydraulic damper designed for precise motion control in confined spaces. Features dual-stage damping with progressive resistance and anti-splash structure. Includes corrosion-resistant mounting brackets for front/rear installation on pneumatic cylinders. Pre-filled with temperature-stable fluid and maintenance-free under normal conditions.
- Pneumatic cylinder end-of-stroke cushioning
- Pick-and-place robot arm vibration suppression
- Conveyor system impact absorption
- Packaging machine stopper mechanisms
- Automated test equipment precision positioning
Installation guidelines:
Align damper axis with impact direction within ±2°. Allow 15mm clearance for stroke adjustment.
Perform trial runs at 50% capacity before full operation. Relubricate every 6 months in high-cycle applications.
| Property | Property Value |
|---|---|
| sku | F-HLQL16B |
| Bore Diameter | 16mm |
