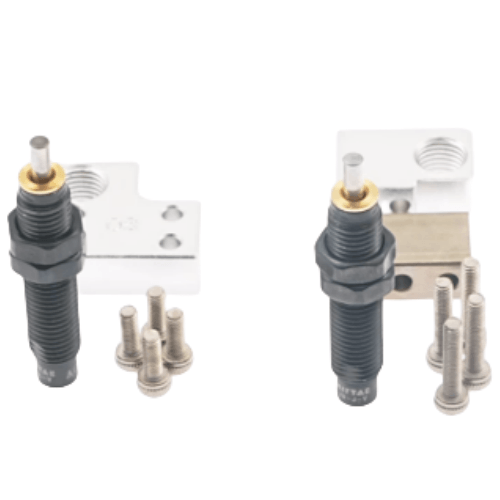

Airtac F-HLQL-B Front and Rear Ends with Hydraulic Shock Absorbers Complete Assembly F-HLQL20B
AirTAC F-HLQL-B Series Oil Hydraulic Shock Absorber Kit F-HLQL20B Specifications
- Model Structure: F-HLQL20B (20mm bore size)
- Type: Front/Rear-end oil hydraulic buffer with pre-mounted adapters
- Max. Absorption Energy: 2.5 J/cycle
- Buffer Force Range: 30-300 N (adjustable via needle valve)
- Operating Temperature: -10℃ to 80℃
- Fluid Capacity: 6.5 cm³ (ISO VG32 hydraulic oil pre-filled)
- Rod Material: S45C steel with nickel plating
- Housing: Aluminum alloy ADC12 with anti-corrosion treatment
- Repeat Positioning Accuracy: ±0.5 mm
- Max. Impact Speed: 0.8 m/s
- Weight: 0.68 kg (complete assembly)
- Dimensions: 72mm(L) × 34mm(W) × 34mm(H) (excluding mounting hardware)
- Mounting Thread: M10×1.25 front/rear
- Surface Hardness: HRC 45-50 (impact surface)
- Protection Class: IP54 (standard sealing)
Double-sided industrial shock absorber with precision metering control, featuring progressive damping characteristics through multi-stage orifice design. The through-shaft construction allows bi-directional impact absorption with adjustable damping force via 360° rotary adjuster. Pre-lubricated for immediate installation.
- High-cycle CNC turret punch press ram deceleration
- Automated assembly robot end-effector vibration control
- Die-casting machine ejection mechanism stabilization
- Palletizer vertical axis emergency stop cushioning
- Semiconductor wafer handling robot Z-axis braking
Installation note:
Mount perpendicular to impact direction using included anti-loosening washers.
Perform 10-15 trial strokes before full operation. Replenish oil every 500,000 cycles
using ISO VG32 equivalent fluid. Avoid side-load exceeding 5° angular misalignment.
| Property | Property Value |
|---|---|
| sku | F-HLQL20B |
| Bore Diameter | <20mm> |
