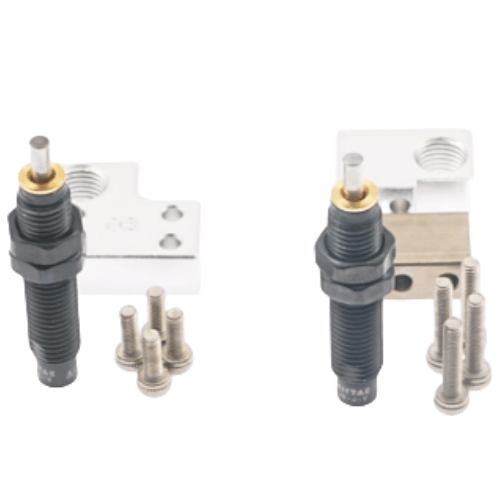

Airtac F-HLQL-B Front and Rear Ends with Hydraulic Shock Absorbers Complete Assembly F-HLQL25B
AirTAC F-HLQL-B Series Oil Hydraulic Shock Absorber (F-HLQL25B)
- Model: F-HLQL25B (Front/Rear End Mounting Kit Included)
- Type: Adjustable oil hydraulic cushion with pre-attached brackets
- Maximum absorbed energy: 25J
- Impact velocity range: 0.1-1.5 m/s
- Stroke: 15mm ±2mm
- Applicable cylinder bore: Ø25mm
- Maximum impact mass: 300kg
- Operating temperature: -10℃ to 80℃
- Housing material: Aluminum alloy ADC12
- Rod material: Chrome-plated steel (S45C)
- Oil type: ISO VG32 hydraulic oil (pre-filled)
- Protection class: IP54 (standard sealing)
- Mounting orientation: Omnidirectional (360° adjustable)
- Weight: 1.2kg ±50g (complete assembly)
- Dimensions: 80mm(L) × 25mm(W) × 25mm(H) (excluding brackets)
- Bracket thickness: 10mm (front), 8mm (rear)
- Surface treatment: Black anodized (body), Electroless nickel plating (brackets)
High-efficiency energy absorption solution with dual-stage damping adjustment. Features integrated mounting brackets for direct cylinder installation and silicone wiper seals to prevent particulate ingress. The progressive damping force curve ensures smooth deceleration across varying loads.
- Injection molding machine ejector mechanisms
- Automated palletizer vertical axis braking
- CNC tool changer positioning stops
- Automotive welding robot end effectors
- Packaging conveyor emergency stop buffers
Maintenance advisory:
Rotate adjustment knob clockwise in 15° increments for force tuning.
Perform oil replenishment every 500,000 cycles using dedicated filling tool AJS-HLQ01.
| Property | Property Value |
|---|---|
| sku | F-HLQL25B |
| Bore Diameter | <25 mm> |
