Airtac F-HLQL-BF Rear End Hydraulic Cushion Complete Package F-HLQL16BF

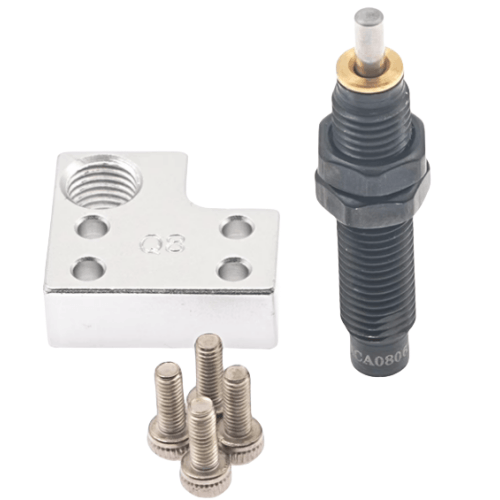

AirTAC F-HLQL-BF Rear-Mounted Hydraulic Shock Absorber Kit (F-HLQL16BF)
- Model: F-HLQL16BF (Complete Kit)
- Type: Adjustable hydraulic cushioning with rear flange mounting
- Bore size: Ø16mm
- Stroke: 15mm ±2mm
- Max. impact energy: 1.3 J/cycle
- Max. reaction force: 2,450 N
- Operating temperature: -10℃ to 80℃
- Fluid viscosity: ISO VG15-68 hydraulic oil
- Seal material: HNBR with wear-resistant coating
- Housing material: SCM435 chrome-molybdenum steel
- Surface treatment: Black oxide coating (Fe3O4)
- Mounting bolts: M8×1.25×20mm (Class 12.9)
- Weight: 480g ±5% (including mounting hardware)
- Dimensions: 68mm(L) × 28mm(W) × 28mm(H) (flange base: 40×40mm)
- Max. piston speed: 0.8 m/s
- Adjustment range: 5-25 clicks (1 click ≈ 0.03 N·s/m)
Precision-engineered hydraulic deceleration unit with micron-level buffering accuracy, featuring twin-chamber oil circulation and temperature-compensated damping. The self-lubricating guide structure ensures consistent performance through 500,000+ cycles. Includes anti-vibration flange gasket and pre-installed mounting hardware for direct installation.
- High-cycle linear actuator end-stop cushioning
- CNC tool changer impact absorption
- Robotic arm joint motion control
- Packaging machine cam follower stabilization
- Automated conveyor divert arm braking
Installation protocol:
Mount perpendicular to impact direction with ≤0.1mm/mm parallelism tolerance.
Perform 20-30 test strokes before full operation. Re-torque bolts to 22N·m after
48hrs of run-in. Maintain oil level through inspection window (visible oil meniscus
indicates proper filling).
| Property | Property Value |
|---|---|
| sku | F-HLQL16BF |
| Bore Diameter | 16mm |
