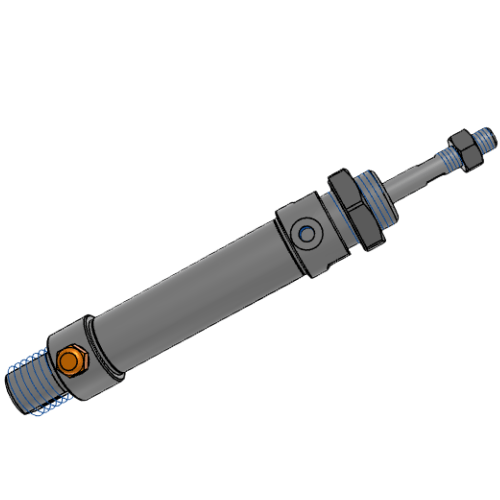

Airtac MTA Single Acting Mini Cylinder MTA40X60SCA
The AirTAC Airtac MTA Single Acting Mini Cylinder MTA40X60SCA is a genuine single acting, pull (spring return) standard round-body mini air cylinder with a Ø40mm bore and 60mm stroke, 1/8" air ports and a stainless-steel barrel with a hard-chrome-plated rod for reliable, mildly corrosion-resistant service.
- BoreØ40 mm
- Stroke60 mm
- Port size1/8"
- Acting typeSingle acting, pull (spring return)
- Rod threadM12×1.25
- CushionFixed anti-impact bumper pads
Airtac MTA Single Acting Mini Cylinder MTA40X60SCA Technical Specifications
| Model | Airtac MTA Single Acting Mini Cylinder MTA40X60SCA |
|---|---|
| Series | MTA mini cylinder |
| Bore size | Ø40 mm |
| Stroke | 60 mm |
| Acting type | Single acting, pull (spring return) |
| Port size | 1/8" |
| Rod thread | M12×1.25 |
| Fluid | Air (filtered by 40µm element) |
|---|---|
| Operating pressure | 0.2 – 1.0 MPa |
| Proof pressure | 1.5 MPa |
| Temperature | -20 to +70 °C |
| Speed range | 50 – 800 mm/s |
| Cushion | Fixed anti-impact bumper pads |
| Max standard stroke | Up to 100 mm |
Specifications follow the official AirTAC MA-series datasheet. Barrel: stainless-steel tube (round-body, riveted rolling-packed construction); piston rod: carbon steel with 20µm hard-chrome plating; covers: aluminium alloy. Thread options: PT (blank) / G / NPT. Every MA-series cylinder ships with a built-in magnet for CMSG / DMSG / EMSG position sensors.
Theoretical Output Force (Ø40mm)
| Pressure | Pull force (spring return) |
|---|---|
| 0.5 MPa | 339.1 N |
| 0.7 MPa | 550.1 N |
Single-acting pull: the spring extends the rod; air retracts it. Forces already net the spring; minimum working pressure is 0.2 MPa.
Model Code: Airtac MTA Single Acting Mini Cylinder MTA40X60SCA
| MTA | Standard round-body mini cylinder (single-acting pull, spring-return). |
|---|---|
| 40 | Bore size in mm. |
| ×60 | Stroke length in mm. |
| -S | Built-in magnet for CMSG / DMSG / EMSG sensors (standard on MA series). |
| CA / U / CM | Back-cover type: CA pivot, U flat-end, CM round-end. |
MA-family variants: MA / MAC (double acting ±cushion), MSA / MTA (single acting push / pull), MAD / MACD (double rod ±cushion), MAJ / MACJ (adjustable stroke ±cushion), MAR (cushioned with integrated F/U mount). Mounting accessories: FA flange, LB foot, SDB pivot; plus I and Y knuckles. Thread PT (blank) / G / NPT.
Installation & Maintenance Notes
- check Use clean air filtered to 40µm or finer.
- check Keep within 0.2 – 1.0 MPa operating pressure.
- check Avoid side load on the piston rod.
- check Do not dismantle the riveted front/back covers.
- check Single-acting: do not force the rod against the spring.
- check Installation by qualified personnel per AirTAC docs.
