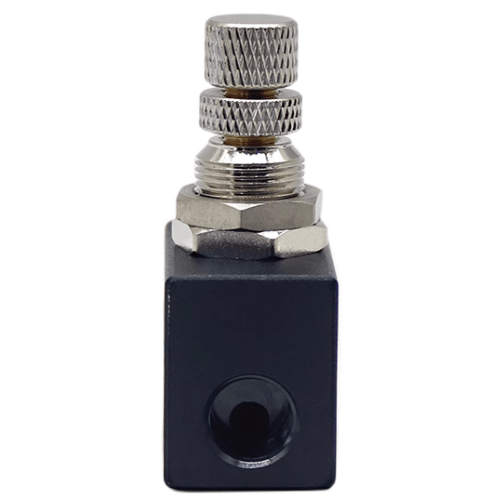

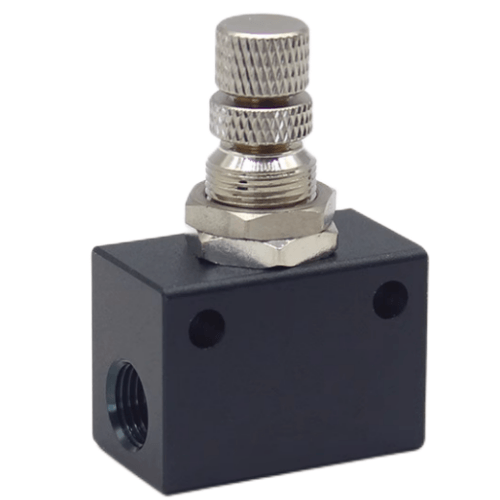

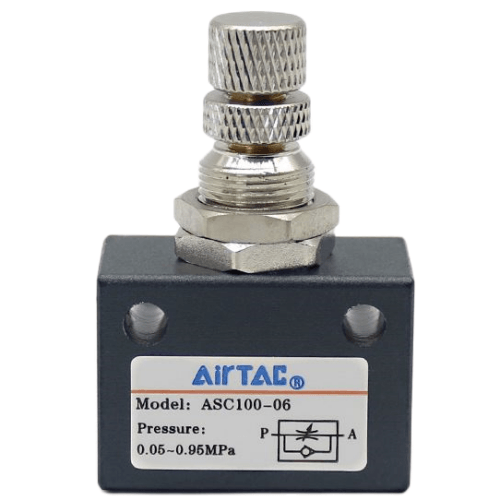

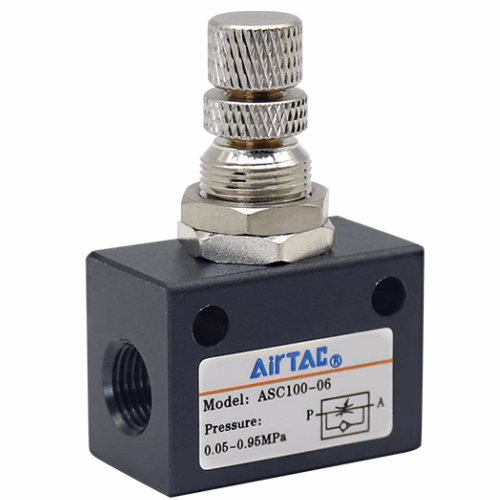

Airtac ASC One-way Throttle Valve ASC-06
$10.04
Regular price
$17.54
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
ASC-06
Product type:
Collections:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
1. Compact and lightweight design with space-saving configuration;
2. Exhaust throttling mechanism enables precise and responsive flow adjustment;
3. Multi-position installation capability ensures flexible mounting and operational convenience.
Category: One-Way Throttle Valve | Brand: AIRTAC | Series: ASC
Installation Guidelines:
Install with arrow marking aligned to controlled flow direction.
Use PTFE tape on male threads only. For optimal performance,
maintain 50mm straight piping upstream. Lubricate with ISO VG32
grade air tool oil if used in high-cycle applications (>1M cycles/yr).
2. Exhaust throttling mechanism enables precise and responsive flow adjustment;
3. Multi-position installation capability ensures flexible mounting and operational convenience.
Category: One-Way Throttle Valve | Brand: AIRTAC | Series: ASC
AirTAC ASC-06 One-Way Throttle Valve Technical Specifications
- Model: ASC-06 (Standard Thread Type)
- Thread Standard: PT1/8 (NPT1/8 optional)
- Flow Capacity: 300 NL/min (at 0.5 MPa)
- Operating Pressure: 0.05–0.9 MPa
- Temperature Range: -20℃ to 80℃
- Flow Adjustment Range: 20–100% full scale
- Body Material: Nickel-plated brass
- Seal Material: HNBR (Hydrogenated Nitrile)
- Weight: 118g ±2g
- Dimensions: 42mm(L) × 26mm(W) × 32mm(H)
- Flow Coefficient (Cv): 0.45
- Pressure Drop: ≤0.02 MPa (at max flow)
- Vibration Resistance: 1.5mm amplitude (10–55Hz)
Precision-engineered throttle valve with unidirectional flow control and reverse free flow. Features micro-click adjustment mechanism (180° rotation range) for stable flow regulation. The chrome-plated lock nut prevents accidental setting changes. Compatible with ISO 15407-1 standards.
Typical Applications:
- Cylinder speed control in automated assembly lines
- Pneumatic actuator timing adjustment systems
- Air tool exhaust silencing circuits
- Vacuum generator flow regulation
- Medical bed pneumatic positioning systems
- Packaging machine clamp force adjustment
Installation Guidelines:
Install with arrow marking aligned to controlled flow direction.
Use PTFE tape on male threads only. For optimal performance,
maintain 50mm straight piping upstream. Lubricate with ISO VG32
grade air tool oil if used in high-cycle applications (>1M cycles/yr).
| Property | Property Value |
|---|---|
| sku | ASC-06 |
| Port | PT1/8 |
