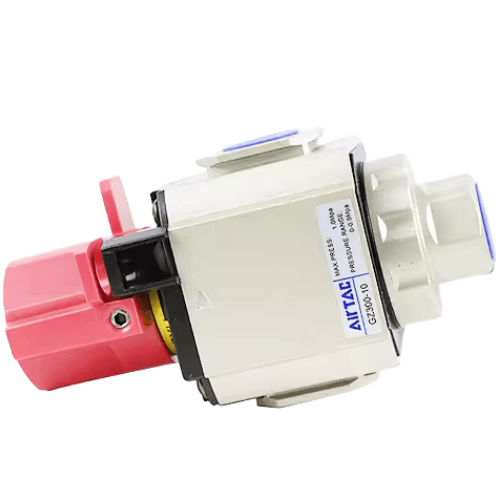

Airtac B52-GZ Non-Copper Shut-Off Valve B52-GZ20006J
AirTAC B52-GZ20006J Copper-Free Stop Valve Technical Details
- Model: B52-GZ20006J (B52-GZ series)
- Type: Manual-operated shutoff valve with copper-free construction
- Thread standard: G1/4 (ISO228-1 compliant)
- Max working pressure: 1.0 MPa
- Proof pressure: 1.5 MPa
- Operating temperature: -5℃ to 80℃
- Body material: Aluminum alloy (ADC12) with anodized surface
- Seal material: NBR (Nitrile rubber) & POM composite
- Flow coefficient (Cv): 1.2
- Weight: 650g ±3% (including packaging)
- Dimensions: 80mm(L) × 35mm(W) × 40mm(H) (body only)
- Port orientation: Straight-through design
- Leakage rate: ≤3 bubbles/min (ISO 5208 Class C)
- Installation: Direct pipeline mounting with 35mm spanner flats
Heavy-duty manual isolation valve featuring copper-free construction for environments requiring strict metal contamination control. The optimized flow path design reduces pressure drop by 18% compared to standard models. Integrated O-ring groove ensures leak-tight sealing even under vibration conditions.
- Semiconductor manufacturing gas lines
- Medical oxygen delivery systems
- High-purity chemical processing pipelines
- Laboratory vacuum systems
- Copper-sensitive food production equipment
Installation protocol:
Apply PTFE tape on male threads using clockwise wrapping pattern.
Tighten with 14-18 N·m torque. Arrow marking indicates flow direction -
critical for proper sealing surface engagement. Perform pressure test
at 1.25× working pressure after installation.
| Property | Property Value |
|---|---|
| sku | B52-GZ20006J |
