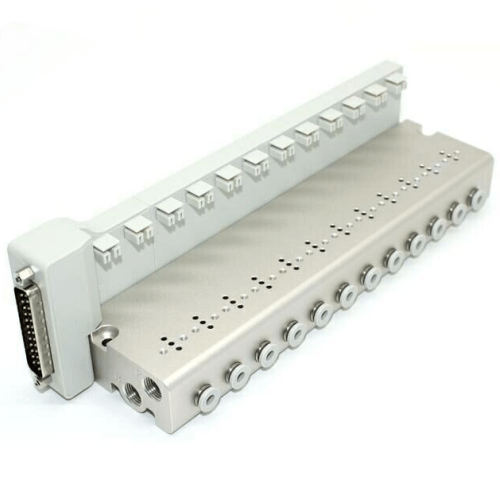

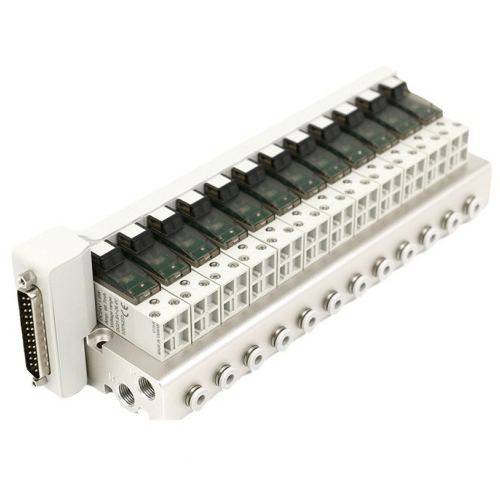

Airtac CPV15S Integrated Valve Manifold CPV15S18F
A cropped merino wool cardigan taken up a notch, thanks to the flecks of metallic thread throughout. We love it even more paired with the matching sweater-pants.
2、Features modular design with flexible expandability, allowing arbitrary combination and extension of connected solenoid valves. Optional blanking plates included for configuration flexibility.
Category: Solenoid Valve Manifold Base , Brand: AirTAC , Series: CPV15S
AirTAC CPV15S18F Modular Valve Base Specifications
- Model: CPV15S18F (CPV15S series)
- Type: Modular aluminum manifold base
- Number of stations: 18 positions
- Port size: 1/8" NPT (G1/8 optional)
- Max flow capacity: 450 NL/min
- Operating pressure: 0.2–1.0 MPa
- Mounting pitch: 18mm per valve station
- Material: Anodized aluminum alloy (AL6063)
- Surface hardness: HV0.3≥12°
- Seal type: Integrated O-ring groove design
- Temperature range: -5℃ to 80℃
- Weight: 2.8 kg (±3%)
- Dimensions: 325mm(L) × 42mm(W) × 28mm(H)
- Port thread depth: 10mm (minimum engagement)
- Max torque resistance: 4.5 N·m
- Surface roughness: Ra≤1.6μm
High-density modular base for creating centralized valve clusters, featuring precision-machined flow channels with pressure loss optimized design. The T-slot mounting system allows tool-free valve installation and supports mixed configurations of different valve types. Includes integrated silencer ports and auto-drain structure.
- Automated assembly line multi-station control
- Textile machinery multi-actuator systems
- Semiconductor handling equipment
- Beverage filling machine valve clusters
- Automated warehouse sorting systems
Installation protocol:
Use M5×16 mounting screws (recommended torque 2.0±0.4 N·m).
Apply thread sealant to end plate ports. For multi-base connections,
maintain 0.5mm gap between units for thermal expansion.
Perform air tightness test at 0.6 MPa for 3 minutes post-installation.
