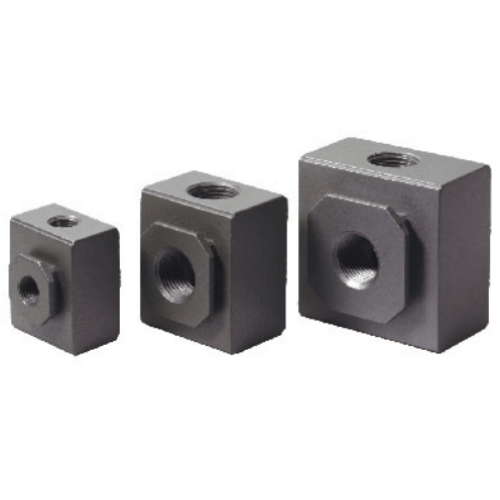

Airtac GA Manifold Block GA20008
2. Compatible with multiple mounting brackets for flexible configuration with regulators and lubricators. Available bracket types: T-style, L-style, U-style.
Category: Air Distribution Block | Brand: AIRTAC | Series: GA
AirTAC GA Series Manifold GA20008 Technical Details
- Model: GA20008 (5-station manifold block)
- Type: Modular aluminum alloy manifold with integrated valve mounting
- Port size: 1/4" NPT standard (G1/4 optional)
- Operating pressure: 0.2–1.0 MPa
- Max flow rate: 750 L/min (ANR)
- Surface treatment: Anodized oxidation + electrophoresis coating
- Weight: 350g ±5% (bare block)
- Dimensions: 80mm(L) × 60mm(W) × 25mm(H)
- Seal material: HNBR (Hydrogenated Nitrile) for high temperature resistance
- Temperature range: -10℃ to 120℃ (with HNBR seals)
- Mounting pattern: Compliant with ISO 15407-1 standard
- Port thread depth: 12mm (minimum engagement 8 threads)
Precision-machined modular manifold designed for centralized pneumatic control systems. Features leak-proof internal passageways with 0.03mm machining tolerance, compatible with most ISO-standard solenoid valves. The T-slot design allows tool-free valve installation and supports daisy-chaining multiple blocks.
- Multi-axis pneumatic actuator control systems
- Plastic injection molding machine manifolds
- Automated assembly line distribution nodes
- Semiconductor manufacturing equipment
- Robotic end-effector pneumatic distribution
Installation note:
Apply 3-5Nm torque during valve mounting. Use PTFE tape on NPT threads
with 1.5-wrap minimum. For vertical installations, orient identification
markings upward for service accessibility.
| Property | Property Value |
|---|---|
| sku | GA20008 |
| Port Size | PT1/4 |
