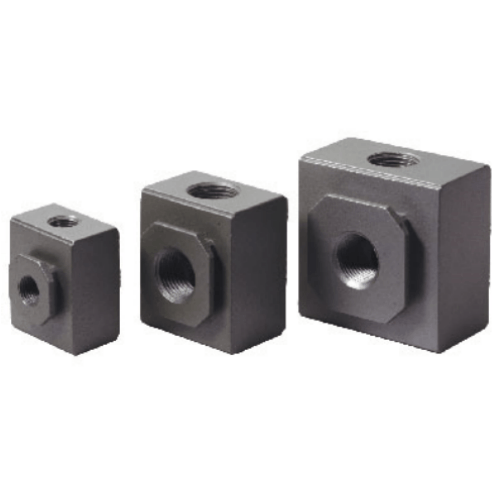

Airtac GA Manifold Block GA30008
2. Compatible with multiple mounting brackets for flexible configuration with regulators and lubricators. Available bracket types: T-style, L-style, U-style.
Category: Air Distribution Block | Brand: AIRTAC | Series: GA
AirTAC GA30008 Modular Manifold Block Specifications
- Model: GA30008 (Base Unit)
- Type: 5-station modular air distribution block
- Port size: 1/4" NPT (G1/8 optional)
- Max operating pressure: 1.0 MPa
- Flow capacity: 800 NL/min
- Material: Anodized aluminum alloy (AL6063)
- Seal type: NBR X-ring seals
- Temperature range: -5℃ to 80℃
- Weight: 215g ±5g
- Dimensions: 62mm(L) × 35mm(W) × 45mm(H)
- Surface roughness: Ra0.8μm
- Mounting torque: 1.5-2.0 N·m
High-density modular manifold designed for multi-valve integration in compact pneumatic systems. Features precision-machined flow channels with optimized pressure drop characteristics. The T-slot design enables flexible expansion with other GA series components. Compatible with ISO 15407-1 standard valves.
- Centralized control of pneumatic actuators in assembly robots
- Multi-station packaging machine air distribution
- PLC-controlled automation test benches
- Semiconductor handling equipment clusters
- Modular pneumatic teaching systems
Installation protocol:
Use PTFE tape on NPT threads with 1.5-wrap minimum. Maintain 0.5mm clearance between modules during stacking.
Perform pressure decay test (≤0.01MPa/min drop) after assembly.
| Property | Property Value |
|---|---|
| sku | GA30008 |
| Port Size | PT1/4 |
