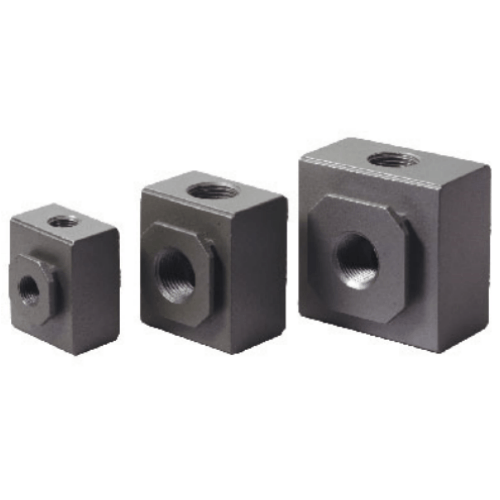

Airtac GA Manifold Block GA40010
2. Compatible with multiple mounting brackets for flexible configuration with regulators and lubricators. Available bracket types: T-style, L-style, U-style.
Category: Air Distribution Block | Brand: AIRTAC | Series: GA
AirTAC GA40010 Modular Manifold Block Specifications
- Model: GA40010
- Type: 4-station modular air distribution block
- Port size: M5 (G1/8 optional)
- Thread depth: 8mm (all ports)
- Operating pressure: 0.2–1.0 MPa
- Max flow rate: 350 L/min
- Material: Anodized aluminum alloy (6063-T5)
- Seal type: NBR O-rings (FDA compliant option available)
- Temperature range: -10℃ to 80℃
- Surface hardness: HV 12±2
- Weight: 450±10g
- Dimensions: 40mm(W) × 40mm(H) × 98mm(L)
- Port spacing: 18mm center-to-center
- Mounting: DIN rail compatible (TS35/7.5/15)
High-density modular manifold designed for centralized pneumatic control systems. Features precision-machined internal channels (φ3.5mm bore) with anti-vortex design for stable pressure distribution. Electrostatic-sprayed surface treatment provides corrosion resistance in humid environments (salt spray test passed 96hrs).
- Multi-axis pneumatic actuator synchronization
- PLC-controlled assembly line manifolds
- Semiconductor handling equipment clusters
- Automated packaging machine air circuits
- Robotic end-effector tooling stations
Installation note:
Apply 2-3Nm torque during valve mounting. Use PTFE tape only on external threads.
Recommended purge cycle: 30-second air blow every 500 operating hours.
| Property | Property Value |
|---|---|
| sku | GA40010 |
| Port Size | PT3/8 |
