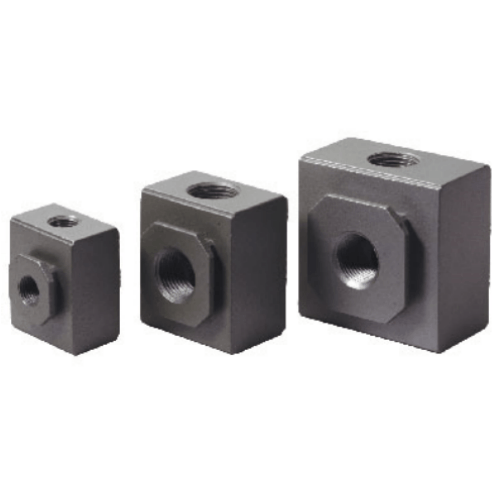

Airtac GA Manifold Block GA40015
2. Compatible with multiple mounting brackets for flexible configuration with regulators and lubricators. Available bracket types: T-style, L-style, U-style.
Category: Air Distribution Block | Brand: AIRTAC | Series: GA
AirTAC GA40015 Air Distribution Block Technical Details
- Model: GA40015
- Type: Modular aluminum manifold with 15 stations
- Port size: 1/8" NPT (G1/8 optional)
- Operating pressure: 0.2–1.0 MPa
- Voltage compatibility: 12-24V DC (for optional solenoid valves)
- Weight: 1.85 kg (with all end plates)
- Dimensions: 242mm(L) × 40mm(W) × 40mm(H) per station block
- Material: Anodized aluminum 6063-T5
- Temperature range: -10℃ to 80℃
- Flow capacity: 750 Nl/min @ 0.5 MPa
- Surface hardness: HV 12-15
- Seal type: Integrated NBR gasket (replaceable)
- Mounting: DIN rail compatible (35mm) or direct screw mounting
- Pressure drop: ≤0.02 MPa @ max flow
- Protection class: IP54 (with sealed solenoids)
High-density modular air distribution system featuring leak-proof design with precision-machined flow channels. The GA40015's staggered port configuration enables compact multi-circuit pneumatic systems, with optional electrical pass-through capability for solenoid valve wiring. Includes pre-installed silencers and mounting hardware.
- Multi-axis robotic tool changers
- Plastic injection molding machine clamp systems
- Automated assembly line control stations
- Semiconductor wafer handling equipment
- Textile machinery air circuit distribution
Installation note:
Apply 5-7 N·m torque during manifold assembly. Use PTFE tape only on external pipe threads,
not on block-to-block mating surfaces. Maximum recommended stack length: 20 stations.
| Property | Property Value |
|---|---|
| sku | GA40015 |
| Port Size | PT 1/2 |
