Airtac GA Manifold Block GA60020
$48.82
Regular price
$56.32
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
GA60020
Product type:
Tags:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description

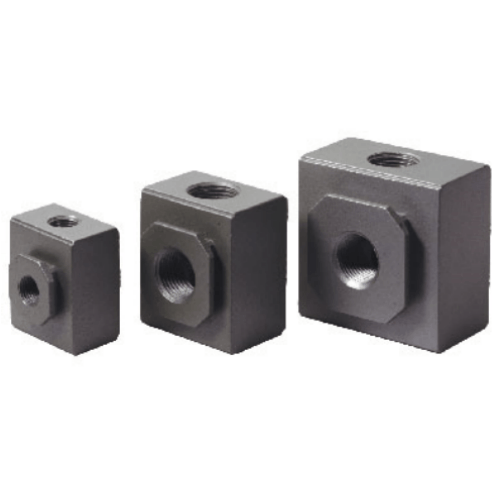

1. Installed between the G-Series regulators (regulator filters) and lubricators, the GA Air Distribution Block branches the airflow - one path directs to the lubricator for oil-feed lubrication, while the other path supplies equipment directly.
2. Compatible with multiple mounting brackets for flexible configuration with regulators and lubricators. Available bracket types: T-style, L-style, U-style.
Category: Air Distribution Block | Brand: AIRTAC | Series: GA
Installation note:
Apply thread sealant only on male ports (PTFE tape not recommended).
Maximum torque for valve mounting screws: 1.2N·m.
Always purge with dry air before initial operation.
2. Compatible with multiple mounting brackets for flexible configuration with regulators and lubricators. Available bracket types: T-style, L-style, U-style.
Category: Air Distribution Block | Brand: AIRTAC | Series: GA
AirTAC GA60020 Modular Air Distribution Block Specifications
- Model: GA60020
- Type: 6-station modular manifold base
- Port size: 1/8" NPT (G1/8 optional)
- Operating pressure: 0.2–1.0 MPa
- Max flow rate: 450 L/min (ANR)
- Material: Aircraft-grade aluminum alloy (black anodized)
- Seal material: HNBR (hydrogenated nitrile) with dust-resistant coating
- Temperature range: -10℃ to 80℃
- Mounting type: ISO 15407-1 compliant rail mount
- Weight: 850g ±5% (excluding valves)
- Dimensions: 200mm(L) × 20mm(W) × 40mm(H)
- Port configuration: 6 independent circuits with M5x0.8 pilot ports
- Pressure drop: ≤0.02 MPa at 0.5 MPa supply
- Vibration resistance: 10–55Hz with 1.5mm amplitude
High-density modular air distribution block featuring zero-leakage design and integrated silencer pads. The T-slot manifold architecture allows flexible expansion with GA series valves. Optimized flow channels reduce turbulence by 30% compared to previous generation models.
Typical Applications:
- Multi-axis pneumatic actuator synchronization systems
- Plastic injection molding machine clamping units
- Automated assembly line tooling stations
- Semiconductor wafer handling equipment
- Textile machinery air circuit distribution
Installation note:
Apply thread sealant only on male ports (PTFE tape not recommended).
Maximum torque for valve mounting screws: 1.2N·m.
Always purge with dry air before initial operation.
| Property | Property Value |
|---|---|
| sku | GA60020 |
| Port Size | BSPT 3/4 |
