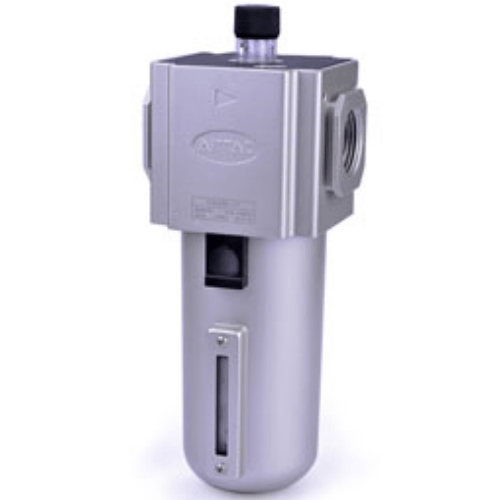

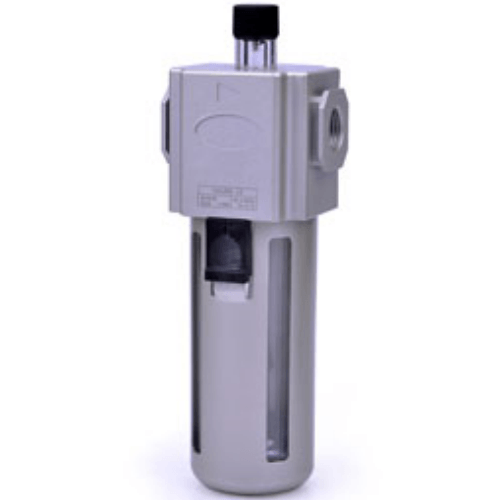

Airtac GAL Lubricator GAL40010J
2. Featuring a single-rotation oil adjustment ring with linear flow distribution, allowing approximate oil delivery estimation through calibrated scale positioning;
3. Specially designed nozzle configuration generates negative pressure at the outlet, achieving minimal mist generation at low flow rates;
4. Supports non-stop oil replenishment with high-capacity reservoir;
5. Multiple cup material options (PC, metal, nylon) available for diverse environmental requirements;
6. Compatible with fixed bracket mounting solutions.
Category: Lubricators | Brand: Airtac | Series: GAL
AirTAC GAL40010J Automatic Lubricator Specifications
- Model: GAL40010J
- Type: Micrometer adjustable pneumatic lubricator
- Port size: 1/4" BSPP (G1/4)
- Operating pressure: 0.05–1.0 MPa
- Oil output adjustment: 10-60 drops/min (micrometer graded)
- Oil reservoir capacity: 200 cm³
- Compatible oils: ISO VG32 or equivalent turbine oils (viscosity 28.8-35.2 cSt)
- Body material: Anodized aluminum alloy
- Seal material: Viton® fluorocarbon rubber
- Temperature range: -10℃ to 60℃ (oil chamber)
- Installation orientation: Vertical ±15°
- Weight: 520g ±3% (empty)
- Dimensions: 80mm(L) × 50mm(W) × 65mm(H)
- Drip window material: Polycarbonate (impact-resistant)
- Filter element: 40μm stainless steel mesh
Precision lubricator featuring triple-stage filtration and corrosion-resistant construction. The rotating bowl design enables quick refilling without disassembly. Equipped with a vacuum breaker to prevent oil backflow and a sight glass with magnified scale for precise droplet monitoring. Requires upstream air filter (5μm recommended).
- Pneumatic cylinder lubrication in assembly lines
- Air tool maintenance systems
- Packaging machinery chain lubrication
- Textile machine pneumatic component protection
- Food processing equipment (food-grade oil compatible)
Maintenance protocol:
Drain condensation weekly via bottom screw. Replace filter element every 2,000 operating hours.
Fill oil to 80% capacity max to ensure proper vacuum formation.
| Property | Property Value |
|---|---|
| sku | GAL40010J |
| Port Size | PT3/8 |
