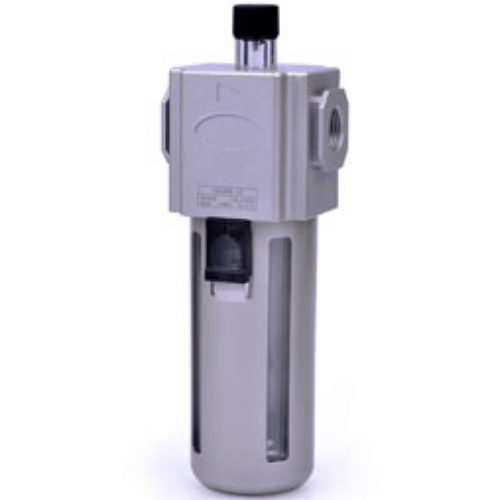

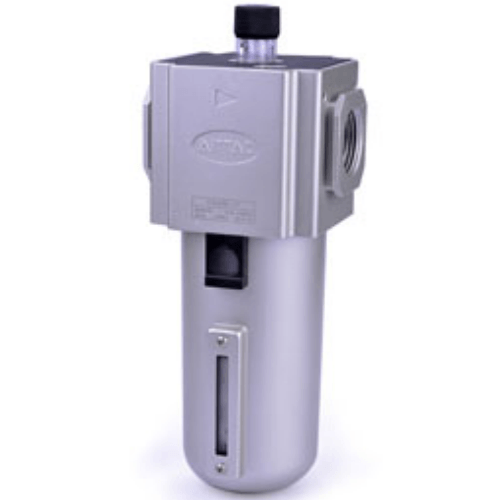

Airtac GAL Lubricator GAL400C15J
2. Featuring a single-rotation oil adjustment ring with linear flow distribution, allowing approximate oil delivery estimation through calibrated scale positioning;
3. Specially designed nozzle configuration generates negative pressure at the outlet, achieving minimal mist generation at low flow rates;
4. Supports non-stop oil replenishment with high-capacity reservoir;
5. Multiple cup material options (PC, metal, nylon) available for diverse environmental requirements;
6. Compatible with fixed bracket mounting solutions.
Category: Lubricators | Brand: Airtac | Series: GAL
AirTAC GAL400C15J Auto Lubricator Specifications
- Model: GAL400C15J
- Type: Micrometer-adjustable pneumatic lubricator
- Capacity: 400ml (transparent polycarbonate reservoir)
- Operating pressure: 0.2–1.0 MPa
- Oil output adjustment: 5-60 drops/min (micrometer dial with lock nut)
- Port size: PT1/4 (G1/4 optional)
- Body material: Anodized aluminum alloy
- Seal material: NBR (nitrile rubber)
- Temperature range: 5℃ to 60℃ (operating fluid temperature)
- Weight: 450g ±5% (empty reservoir)
- Dimensions: 150mm(L) × 75mm(W) × 45mm(H)
- Visibility: Magnified scale window with MAX/MIN markers
- Protection rating: IP40
Precision oil-feed device with drip monitoring, featuring a bubble flow design that prevents oil starvation. The anti-clogging ceramic filter ensures stable lubrication for pneumatic systems. Includes a pressure-resistant check valve to prevent reverse flow. Requires ISO VG32 or equivalent turbine oil (viscosity range: 20-50 cSt).
- Pneumatic cylinder maintenance in assembly lines
- Air tool lubrication in automotive repair shops
- Packaging machinery chain drives
- Textile machine air actuator systems
- Plastic injection molding machine pneumatics
Installation protocol:
Mount vertically downstream of FRL units (after pressure regulator).
Maintain 1/4 reservoir volume during operation. Replace filter element
every 2,000 operating hours or when flow rate drops below 5 drops/min.
| Property | Property Value |
|---|---|
| sku | GAL400C15J |
| Port Size | PT 1/2 |
