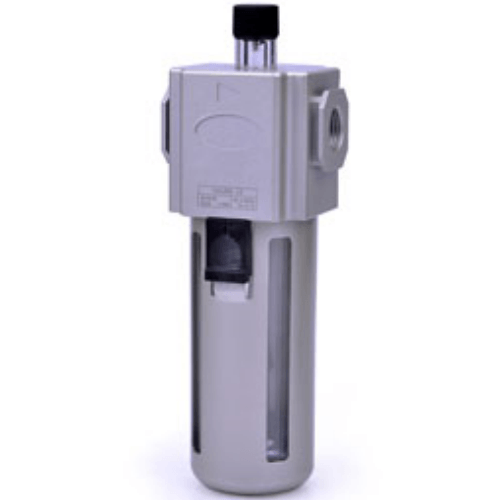

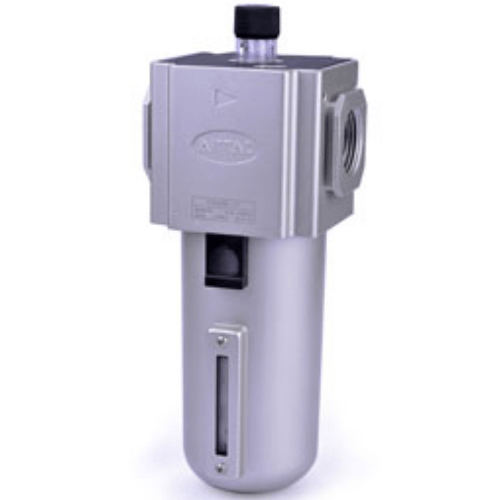

Airtac GAL Lubricator GAL50020J
2. Featuring a single-rotation oil adjustment ring with linear flow distribution, allowing approximate oil delivery estimation through calibrated scale positioning;
3. Specially designed nozzle configuration generates negative pressure at the outlet, achieving minimal mist generation at low flow rates;
4. Supports non-stop oil replenishment with high-capacity reservoir;
5. Multiple cup material options (PC, metal, nylon) available for diverse environmental requirements;
6. Compatible with fixed bracket mounting solutions.
Category: Lubricators | Brand: Airtac | Series: GAL
AirTAC GAL50020J Automatic Lubricator Specifications
- Model: GAL50020J
- Type: Micrometer-adjustable pneumatic lubricator
- Capacity: 500ml (16.9 oz)
- Oil Output Adjustment: 0.2-3.0 ml/min (micrometer controlled)
- Operating Pressure: 0.2-1.0 MPa (29-145 PSI)
- Max Flow Rate: 3000 L/min (Cv≈1.2)
- Port Connection: PT1/4 (BSPP)
- Body Material: Anodized aluminum alloy
- Oil Cup Material: Impact-resistant polycarbonate
- Weight: 450g ±5% (empty)
- Dimensions: Ø90mm (D) × 180mm (H)
- Temperature Range: -5℃ to 60℃ (operating fluid: ISO VG32 or equivalent)
- Drip Visibility: Transparent window with oil level markings
- Filter Element: 40μm stainless steel mesh (replaceable)
Professional-grade lubricator featuring precision oil metering through a calibrated micrometer knob with 180° rotation range. The corrosion-resistant design includes a shatterproof PC oil reservoir with UV protection and built-in check valve to prevent reverse flow. Requires upstream air filtration (5μm recommended).
- Pneumatic tool maintenance stations
- Automated assembly line cylinder lubrication
- Packaging machinery air line conditioning
- Industrial robot end-effector pneumatic systems
- CNC machine air blast/lubrication hybrid systems
Installation protocol:
Mount vertically within 5° of plumb position. Fill oil to 80% capacity maximum.
Perform initial adjustment with air flow active - turn knob clockwise until oil mist
becomes visible, then back off 1/4 turn for optimal lubrication.
| Property | Property Value |
|---|---|
| sku | GAL50020J |
| Port Size | BSPT 3/4 |
