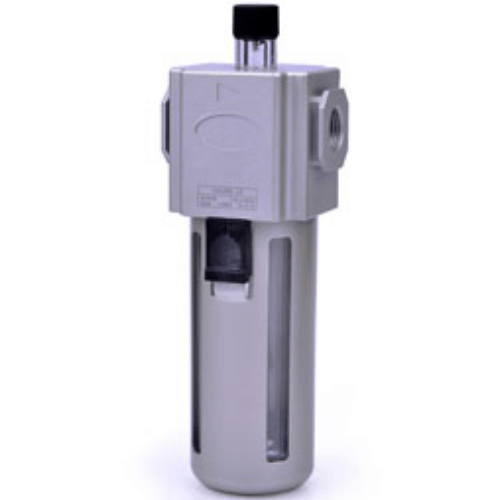

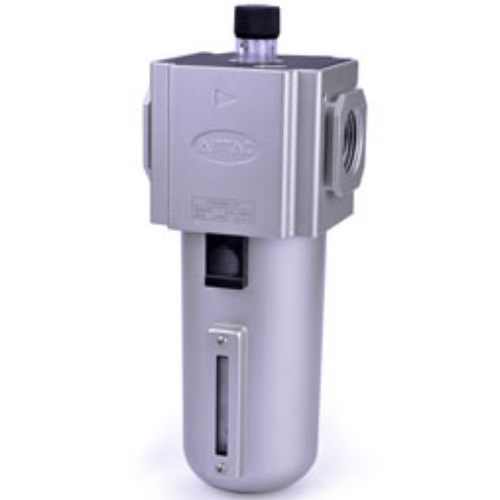

Airtac GAL Lubricator GAL500C20
2. Featuring a single-rotation oil adjustment ring with linear flow distribution, allowing approximate oil delivery estimation through calibrated scale positioning;
3. Specially designed nozzle configuration generates negative pressure at the outlet, achieving minimal mist generation at low flow rates;
4. Supports non-stop oil replenishment with high-capacity reservoir;
5. Multiple cup material options (PC, metal, nylon) available for diverse environmental requirements;
6. Compatible with fixed bracket mounting solutions.
Category: Lubricators | Brand: Airtac | Series: GAL
AirTAC GAL500C20 Lubricator Specifications
- Model: GAL500C20
- Type: Micro-lubrication oil feeder with adjustable drip rate
- Capacity: 500cc (transparent polycarbonate reservoir)
- Connection port: 1/4" NPT (BSPP/BSPT adapters available)
- Operating pressure: 0.05-1.0 MPa
- Oil viscosity range: ISO VG32-220 (68-1000 SUS)
- Flow adjustment: 0-60 drops/min via precision needle valve
- Body material: Anodized aluminum alloy
- Seal material: NBR (nitrile rubber)
- Temperature range: -5℃ to 60℃ (operating fluid)
- Weight: 350g ±5% (empty)
- Dimensions: 85mm(L) × 65mm(W) × 120mm(H)
- Mounting: Panel bracket or direct pipeline installation
- IP rating: IP40 (non-waterproof)
Precision pneumatic lubricator featuring bubble-through visual oil monitoring and anti-backflow design. The dual-chamber structure separates air and oil paths to prevent oil starvation. Includes a magnetic debris collector in the base and twist-lock reservoir for quick refills. Requires ISO 32-220 grade turbine oil or equivalent.
- Pneumatic cylinder maintenance in automated assembly lines
- Air tool lubrication systems
- Packaging machinery chain drives
- CNC machine pneumatic clutches
- Textile machinery air actuators
Maintenance protocol:
Refill when oil level drops below 1/3 capacity. Replace filter element (P/N: GAL-FE20) every 2,000 operating hours. For cold environments below 0℃, use winter-grade oil with anti-gel additives.
| Property | Property Value |
|---|---|
| sku | GAL500C20 |
| Port Size | BSPT 3/4 |
