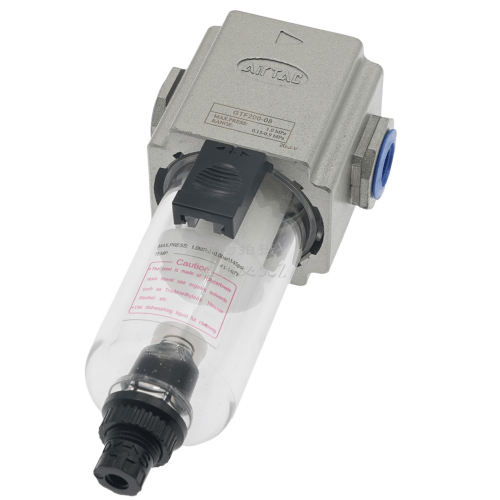

Airtac GTF Filter GTF20006
2. Both water and oil bowls utilize space-efficient short-type PC construction, enabling compact installations in space-restricted applications;
3. Equipped with differential pressure manual drainage mechanism for optimized fluid management.
Category: Filters | Brand: AirTAC | Series: GTF
AirTAC GTF Filter GTF20006 Technical Specifications
- Model: GTF20006
- Type: Auto-drain type compressed air filter
- Port size: PT1/4 (G1/4 equivalent)
- Filtration rating: 40 μm (5 μm optional element available)
- Max operating pressure: 1.5 MPa (217 psi)
- Flow capacity: 2000 L/min (ANR)
- Weight: 0.52 kg (1.15 lbs)
- Dimensions: 98mm(L) × 54mm(W) × 98mm(H)
- Housing material: Anodized aluminum alloy
- Filter element: Sintered stainless steel (replaceable)
- Drain type: Semi-automatic float drain
- Temperature range: -20℃ to 60℃ (non-freezing)
- Pressure loss: ≤0.05 MPa @ rated flow
- Thread standard: ISO 228/1 (BSPP)
High-efficiency particulate filter with integrated moisture separation, featuring a cyclone structure for preliminary water removal and precision secondary filtration. The zinc-nickel plated bowl resists corrosion in humid environments. Designed for compressed air pretreatment in critical pneumatic systems.
- Upstream protection for precision pneumatic valves
- CNC machine tool air preparation units
- Food packaging line air purification
- Laboratory instrument air supply systems
- Robotic actuator protection in automotive assembly
Maintenance protocol:
Install vertically with bowl downward. Replace element when pressure drop exceeds 0.08 MPa.
Drain bowl daily in high-humidity environments. Use thread seal tape on male ports only.
- For oil mist removal: Pair with AFD series after-filter
- High-flow variant: GTF20006-H (3000 L/min capacity)
- Low-temperature version available (-40℃ operation)
| Property | Property Value |
|---|---|
| sku | GTF20006 |
| Port Size | PT1/8 |
