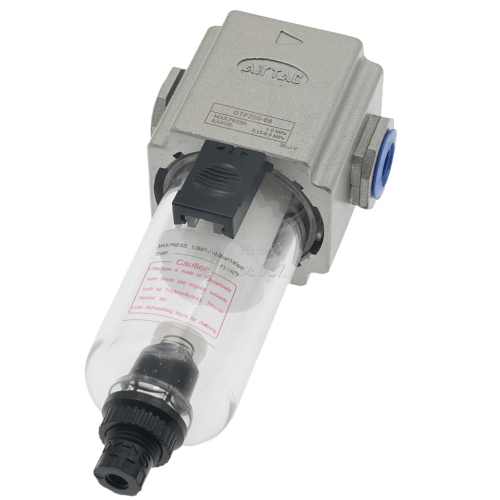

Airtac GTF Filter GTF20006W
2. Both water and oil bowls utilize space-efficient short-type PC construction, enabling compact installations in space-restricted applications;
3. Equipped with differential pressure manual drainage mechanism for optimized fluid management.
Category: Filters | Brand: AirTAC | Series: GTF
AirTAC GTF Filter GTF20006W Technical Details
- Model: GTF20006W
- Type: Auto-drain compressed air filter with water separator
- Filtration grade: 5μm (initial), 0.3μm (final)
- Flow capacity: 1,200 L/min (at 0.7MPa)
- Operating pressure: 0.15–1.0 MPa
- Port size: PT3/8 (BSPP thread)
- Filter element: Stainless steel mesh + glass fiber
- Drain type: Semi-automatic float drain
- Temperature range: -5℃ to 60℃ (non-freezing)
- Weight: 0.82 kg (with bracket)
- Dimensions: 140mm(H) × 80mm(Dia) × 120mm(Width with bracket)
- Housing material: Anodized aluminum alloy
- Pressure loss: ≤0.02 MPa (at rated flow)
- Moisture removal efficiency: ≥95% (at 21℃, 70% RH)
Industrial-grade coalescing filter with dual-stage filtration, designed for compressed air pretreatment systems. Features a cyclone separation chamber for bulk water removal and multi-layer filtration media for aerosol elimination. The zinc-nickel plated bracket allows 360° mounting flexibility.
- Pneumatic tool air line conditioning
- CNC machine air preparation units
- Food packaging air sterilization systems
- Laser cutting machine gas filtration
- Medical device pneumatic circuits
Maintenance protocol:
Replace filter element every 4,000 operational hours or when differential pressure exceeds 0.05MPa.
Drain bowl should be manually purged weekly in high-humidity environments.
| Property | Property Value |
|---|---|
| sku | GTF20006W |
| Port Size | PT1/8 |
