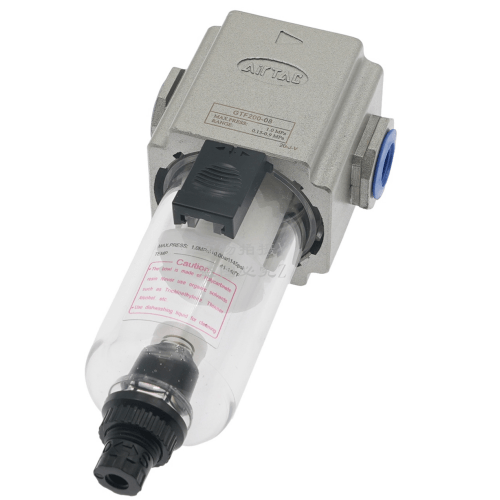

Airtac GTF Filter GTF20008W
2. Both water and oil bowls utilize space-efficient short-type PC construction, enabling compact installations in space-restricted applications;
3. Equipped with differential pressure manual drainage mechanism for optimized fluid management.
Category: Filters | Brand: AirTAC | Series: GTF
AirTAC GTF Filter GTF20008W Technical Details
- Model: GTF20008W
- Type: Miniature auto-drain compressed air filter
- Filtration grade: 5 μm (βx≥1000)
- Max working pressure: 1.0 MPa (145 psi)
- Flow capacity: 800 L/min (at 0.7 MPa)
- Port size: PT1/4 (G1/4 optional)
- Filter element: Hydrophobic polyester fiber
- Drain type: Semi-automatic push-button with anti-splash
- Temperature range: -10℃ to 60℃ (non-freezing)
- Housing material: Reinforced PBT + PC composite
- Weight: 220 g ±5%
- Dimensions: 86mm(H) × 50mm(W) × 50mm(D)
- Pressure loss: ≤0.02 MPa (at rated flow)
- Bowl capacity: 12 mL
- Orientation: Vertical installation required
High-efficiency particulate filter with integrated moisture separation, featuring a transparent bowl with anti-UV coating for visual sludge inspection. The cyclone separation structure achieves 95% bulk water removal before filtration. The sintered brass inlet screen prevents particle backflow during maintenance. Rated for ISO 8573-1:2010 Class 4 compressed air quality.
- Pre-filter for pneumatic valves and cylinders in CNC machinery
- Air preparation units for semiconductor manufacturing tools
- Spray painting systems requiring moisture-free air supply
- Laboratory pneumatic instrument protection
- Packaging line actuator air line conditioning
Maintenance protocol:
Replace element when pressure drop exceeds 0.05 MPa or annually.
Drain bowl daily in high-humidity environments. Use only original
filter elements (P/N: GTF-EF05) to maintain β ratio performance.
| Property | Property Value |
|---|---|
| sku | GTF20008W |
| Port Size | PT1/4 |
