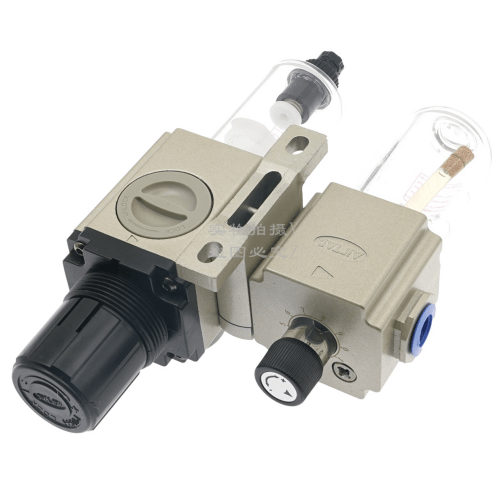

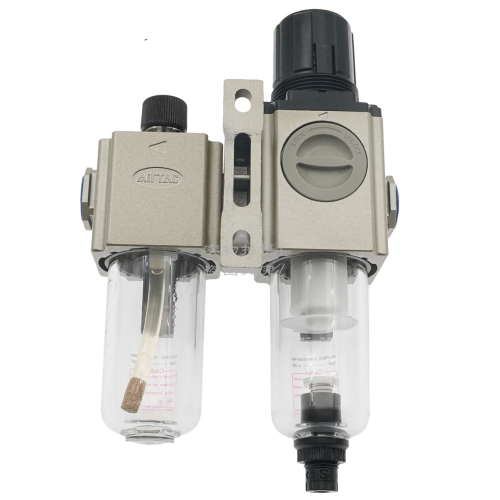

Airtac GTFC Air Filter Regulator Combination GTFC20006SWK
2. Equipped with compact short-type PC bowls for both water and oil reservoirs, delivering minimized installation footprint ideal for space-constrained applications;
3. Integrated differential pressure manual drainage mechanism for filter bowl water discharge.
Category: Air Treatment Combination Units | Brand: AIRTAC | Series: GTFC
AirTAC GTFC20006SWK Filter Regulator Lubricator (FRL) Combination Unit Specifications
- Model: GTFC20006SWK
- Type: 3-in-1 Combination Unit (Filter + Regulator + Lubricator)
- Port size: PT1/4 (G1/4 equivalent)
- Operating pressure range: 0.05–0.85 MPa
- Maximum flow: 1,200 L/min (ANR)
- Filter micron rating: 5 μm (auto-drain version)
- Pressure gauge: 1/8" BSPT dial (0-1.0 MPa scale)
- Lubricator oil capacity: 90 cm³ (with drip-feed adjustment)
- Body material: Anodized aluminum alloy
- Seal material: HNBR (Hydrogenated Nitrile)
- Temperature range: -5℃ to 60℃ (non-freezing conditions)
- Weight: 0.9 kg (empty)
- Dimensions: 130mm(L) × 100mm(W) × 120mm(H)
- Mounting: Panel bracket with M5 screw slots
Modular FRL unit featuring triple-stage air preparation: centrifugal particle separation, pressure stabilization, and adjustable oil mist lubrication. Includes a manual bypass valve for emergency operation and a visible bowl guard. The transparent polycarbonate filter bowl allows visual contamination monitoring with 180° rotation capability.
- Pneumatic tool stations in automotive assembly lines
- CNC machine air line conditioning
- Industrial robot end-effector supply systems
- Food packaging machinery (using food-grade lubricants)
- Plastic injection molding air circuits
Installation protocol:
Install vertically with arrow marking aligned to airflow direction. Maintain minimum 50mm clearance below bowl for drainage. Lubricator should only be activated downstream of actuators requiring oil mist (5-10 drops/m³ recommended). Replace filter element every 2,000 operational hours.
| Property | Property Value |
|---|---|
| sku | GTFC20006SWK |
| Port Size | PT1/8 |
