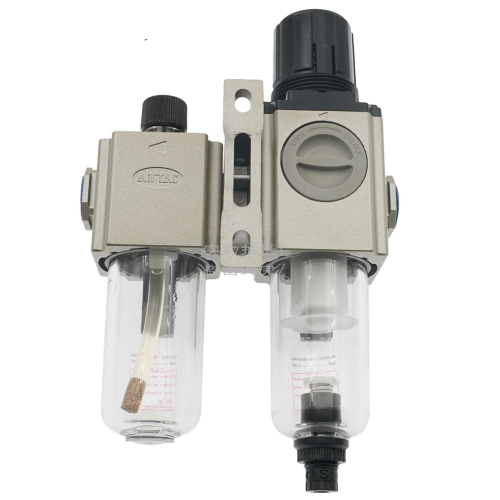

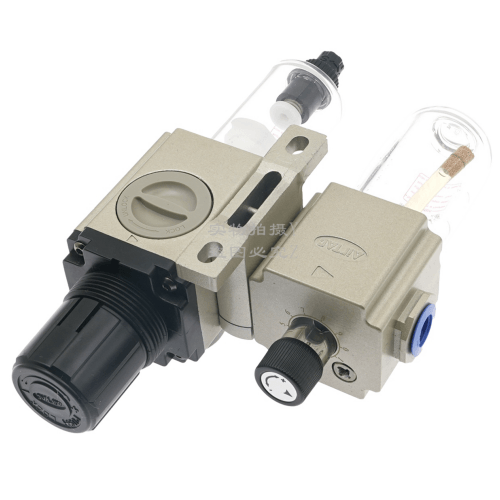

Airtac GTFC Air Filter Regulator Combination GTFC20008LNWK
2. Equipped with compact short-type PC bowls for both water and oil reservoirs, delivering minimized installation footprint ideal for space-constrained applications;
3. Integrated differential pressure manual drainage mechanism for filter bowl water discharge.
Category: Air Treatment Combination Units | Brand: AIRTAC | Series: GTFC
AirTAC GTFC20008LNWK Twin Unit (Filter Regulator Lubricator) Specifications
- Model: GTFC20008LNWK
- Type: 3-in-1 FRL combination unit (Filter + Regulator + Lubricator)
- Port size: PT1/2 (G1/2 optional)
- Operating pressure: 0.05–1.0 MPa
- Max flow rate: 3,500 L/min (ANR)
- Filter rating: 5μm (40μm optional element available)
- Lubricator oil capacity: 200cc
- Pressure gauge: 1/8" dial type (MPa/psi dual scale)
- Body material: Die-cast aluminum (anodized finish)
- Seal material: HNBR (high-grade oil-resistant compound)
- Temperature range: -5℃ to 60℃ (non-freezing conditions)
- Weight: 2.8 kg (dry, without oil)
- Dimensions: 220mm(H) × 150mm(W) × 135mm(D)
- Drain type: Manual float drain with anti-splash shield
Integrated compressed air treatment unit combining precision filtration (5μm), pressure regulation (±0.02MPa stability), and adjustable oil mist lubrication. Features corrosion-resistant construction with ergonomic pressure adjustment knob and visible oil level window. Built-in bypass valve prevents pressure spikes during adjustment. Requires 0.5-1.0L/min oil supply for continuous lubrication mode.
- Pneumatic production line main air preparation
- CNC machine tool pneumatic systems
- Automated assembly line actuator control
- Food packaging machinery air supply treatment
- Industrial robot end-effector support systems
Installation note:
Maintain vertical installation with filter bowl downward. Lubricator should be positioned
≤5 meters downstream from actuators. Replace filter element when pressure drop exceeds 0.05MPa.
Fill oil to 80% of cup capacity for optimal mist generation.
| Property | Property Value |
|---|---|
| sku | GTFC20008LNWK |
| Port Size | PT1/4 |
