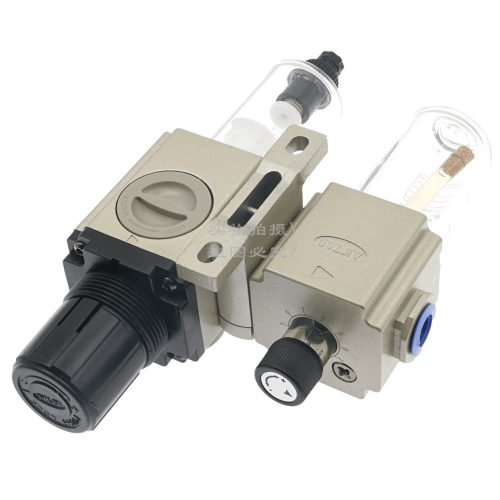

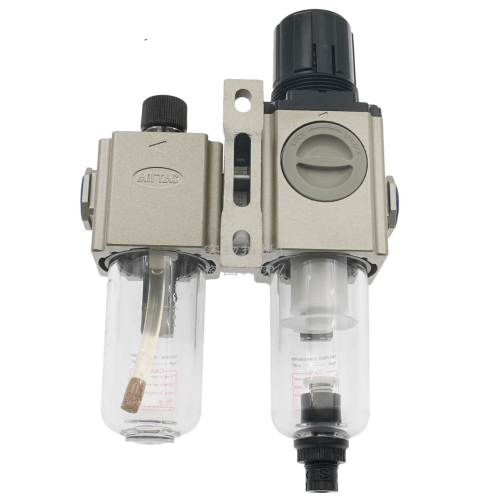

Airtac GTFC Air Filter Regulator Combination GTFC20008LW
2. Equipped with compact short-type PC bowls for both water and oil reservoirs, delivering minimized installation footprint ideal for space-constrained applications;
3. Integrated differential pressure manual drainage mechanism for filter bowl water discharge.
Category: Air Treatment Combination Units | Brand: AIRTAC | Series: GTFC
AirTAC GTFC20008LW Twin Unit (FRL) Technical Specifications
- Model: GTFC20008LW
- Type: Filter-Regulator-Lubricator combination unit
- Port size: PT 3/4 (G3/4 optional)
- Operating pressure range: 0.15-1.0 MPa
- Filtration grade: 5 μm (40 μm optional element available)
- Pressure regulation range: 0.05-0.85 MPa
- Maximum flow rate: 5,000 L/min (ANR)
- Oil capacity: 180 cm³ (lubricator section)
- Temperature range: -5℃ to 60℃ (non-freezing)
- Body material: Aluminum alloy (filter bowl: polycarbonate)
- Seal material: NBR (nitrile rubber)
- Weight: 2.65 kg (dry)
- Dimensions: 215mm(H) × 125mm(W) × 190mm(D)
- Pressure gauge: 1/8" BSPT, 63mm dial diameter
- Drain type: Manual drain with semi-auto assist
Heavy-duty combination unit integrating 3-stage air preparation: mechanical filtration (with auto-float drain), precision pressure regulation, and adjustable oil mist lubrication. Features impact-resistant bowl guard, chrome-plated adjustment knob with lock, and dual-scale pressure gauge (MPa/psi). Designed for industrial environments requiring stable air quality and precise pressure control.
- Pneumatic tool stations in automotive assembly lines
- Air preparation for CNC machine pneumatic systems
- Packaging machinery with multiple actuator groups
- Foundry equipment requiring air lubrication
- Plastic injection molding machine air circuits
Installation guidelines:
Mount vertically with filter unit upstream. Allow 50mm clearance below drain port.
Lubricator should be positioned after equipment needing oil mist. Replace filter element
when pressure drop exceeds 0.07 MPa. Use ISO VG32 turbine oil for lubrication.
Critical note:
Not compatible with phosphate ester-based lubricants or chlorinated solvents.
Avoid compressed air temperatures exceeding 60℃ to prevent bowl deformation.
| Property | Property Value |
|---|---|
| sku | GTFC20008LW |
| Port Size | PT1/4 |
