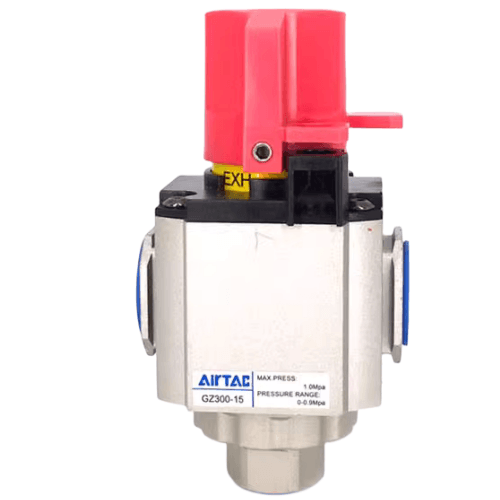

Airtac GZ Globe Valve GZ30008
1. Modular design with bracket compatibility for integration with G/GA series FRL units;
2. Configurable as manual three-way valve operation;
3. Visual confirmation of operational status through EXH./SUP. indicator markings;

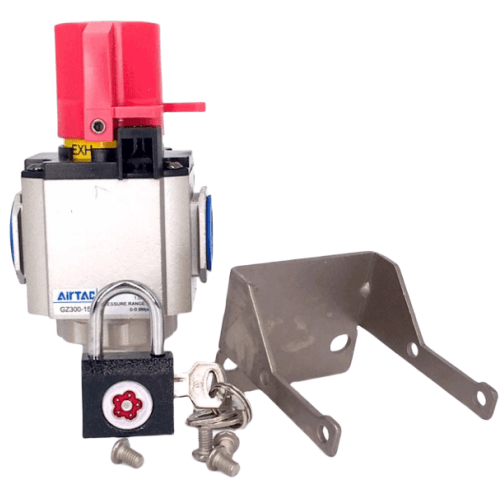

4. OSHA-compliant safety mechanism: Features lockable actuator and integrated exhaust valve that simultaneously vents residual pressure while shutting off air supply during maintenance. This prevents accidental pressurization of downstream circuits by third-party interference, ensuring compliance with OSHA 29 CFR 1910.147 requirements for control of hazardous energy (lockout/tagout).
Category: Shut-off Valve | Brand: AIRTAC | Series: GZ
AirTAC GZ Series Shut-Off Valve GZ30008 Technical Details
- Model: GZ30008 (Threaded End)
- Type: 2-position 2-way manual reset shut-off valve
- Port size: PT3/8 (G3/8 optional)
- Operating pressure: 0.1–0.9 MPa
- Max flow capacity: 1,200 L/min (ANR)
- Body material: Nickel-plated brass
- Seal material: HNBR rubber (-20℃ to 120℃ rated)
- Operating temperature: -10℃ to 80℃
- Actuation force: ≤15N manual lever operation
- Weight: ~450g (with fittings)
- Dimensions: 60mm(L) × 35mm(W) × 85mm(H)
- Port thread depth: 12mm engagement
- Pressure drop: ≤0.02 MPa at max flow
- Certification: RoHS compliant
Robust emergency flow control valve featuring positive shut-off mechanism with visual position indicator. The chrome-plated brass construction ensures corrosion resistance in humid environments, while the oversized lever allows quick operation even with gloved hands. Requires upstream filtration (25μm recommended).
- Pneumatic system emergency isolation
- Production line maintenance lockout
- Compressed air distribution manifolds
- Industrial dryer safety cutoff
- CNC machine tool air supply control
Installation note:
Mount in accessible locations with lever clearance ≥50mm.
Apply 3 wraps of PTFE tape on male threads.
Perform monthly lever cycling to prevent seal adhesion.
| Property | Property Value |
|---|---|
| sku | GZ30008 |
| Number of Positions | 3-Port 2-Position |
| Exhaust Port Size | PT3/8 |
| Port | PT1/4 |
| Bracket Code | With Bracket |
