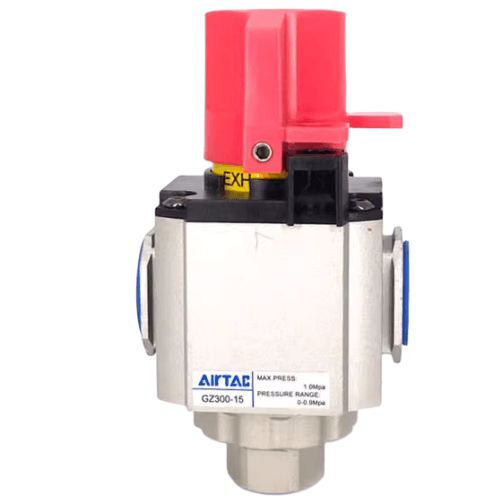

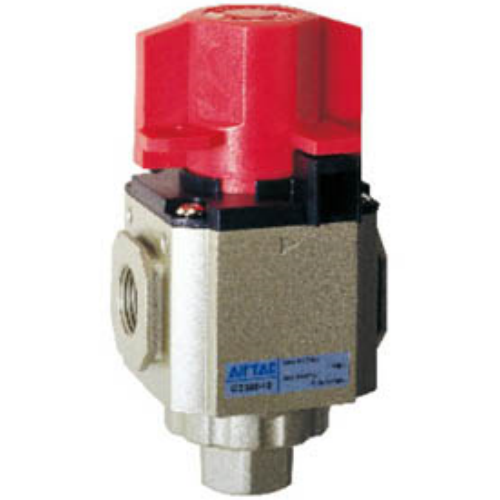

Airtac GZ Globe Valve GZ30010
$34.86
Regular price
$42.36
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
GZ30010
Product type:
Tags:
Collections:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
GZ Series Shut-off Valve Technical Specifications:
1. Modular design with bracket compatibility for integration with G/GA series FRL units;
2. Configurable as manual three-way valve operation;
3. Visual confirmation of operational status through EXH./SUP. indicator markings;

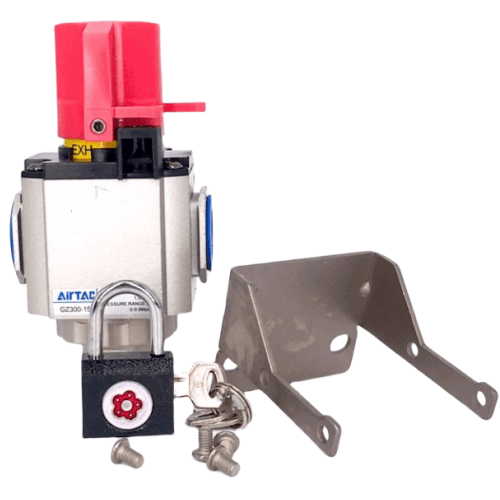

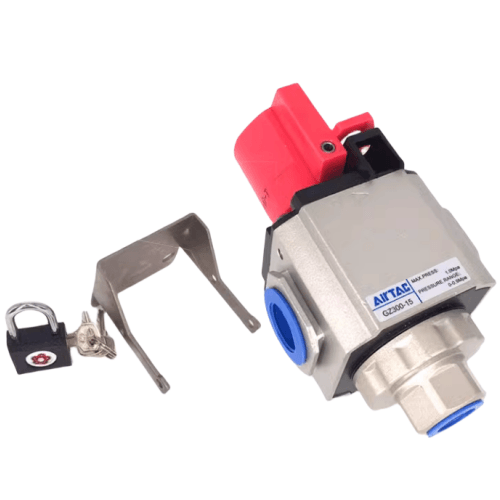

4. OSHA-compliant safety mechanism: Features lockable actuator and integrated exhaust valve that simultaneously vents residual pressure while shutting off air supply during maintenance. This prevents accidental pressurization of downstream circuits by third-party interference, ensuring compliance with OSHA 29 CFR 1910.147 requirements for control of hazardous energy (lockout/tagout).
Category: Shut-off Valve | Brand: AIRTAC | Series: GZ
Installation guidelines:
Mount horizontally with arrow aligned to flow direction. Apply 20-30Nm torque during port connection.
Perform monthly manual cycling to prevent seal adhesion. Use Loctite 545 on threaded ports.
1. Modular design with bracket compatibility for integration with G/GA series FRL units;
2. Configurable as manual three-way valve operation;
3. Visual confirmation of operational status through EXH./SUP. indicator markings;
4. OSHA-compliant safety mechanism: Features lockable actuator and integrated exhaust valve that simultaneously vents residual pressure while shutting off air supply during maintenance. This prevents accidental pressurization of downstream circuits by third-party interference, ensuring compliance with OSHA 29 CFR 1910.147 requirements for control of hazardous energy (lockout/tagout).
Category: Shut-off Valve | Brand: AIRTAC | Series: GZ
AirTAC GZ Series Shut-Off Valve GZ30010 Technical Details
- Model: GZ30010
- Type: Manual reset 2-position normally open
- Port configuration: 1/4" BSPP female threads
- Maximum pressure: 1.0 MPa (145 psi)
- Operating temperature: -5℃ to 80℃
- Flow capacity: 200 L/min (Cv=0.36)
- Body material: Aluminum alloy (anodized finish)
- Seal compound: HNBR (hydrogenated nitrile)
- Weight: 320g ±5g
- Dimensions: 55mm(L) × 40mm(W) × 75mm(H)
- Actuation force: ≤50N
- Leakage rate: <3 bubbles/min (ISO 6952)
- Protection class: IP67 (when properly installed)
Robust emergency shut-off valve featuring positive mechanical lockout capability through manual override. The dual-seal design with wear-compensation ensures zero leakage in critical applications. Optimized flow path reduces turbulence for stable pressure maintenance.
Primary Applications:
- Safety circuits in injection molding machines
- Emergency air supply cutoff in CNC equipment
- Process isolation in semiconductor gas lines
- Maintenance lockout in assembly line pneumatics
- Pressure vessel safety systems
Installation guidelines:
Mount horizontally with arrow aligned to flow direction. Apply 20-30Nm torque during port connection.
Perform monthly manual cycling to prevent seal adhesion. Use Loctite 545 on threaded ports.
| Property | Property Value |
|---|---|
| sku | GZ30010 |
| Number of Positions | 3-Port 2-Position |
| Exhaust Port Size | PT3/8 |
| Port | PT3/8 |
| Bracket Code | With Bracket |
