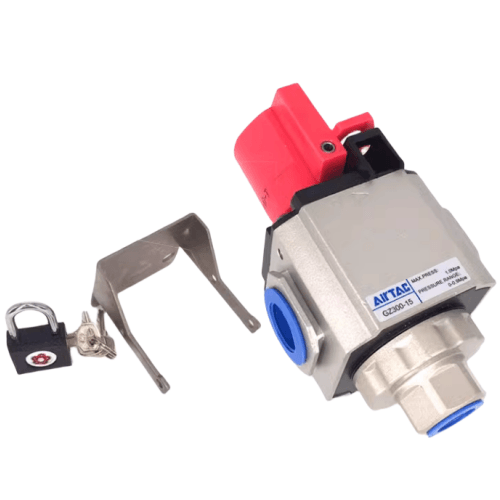

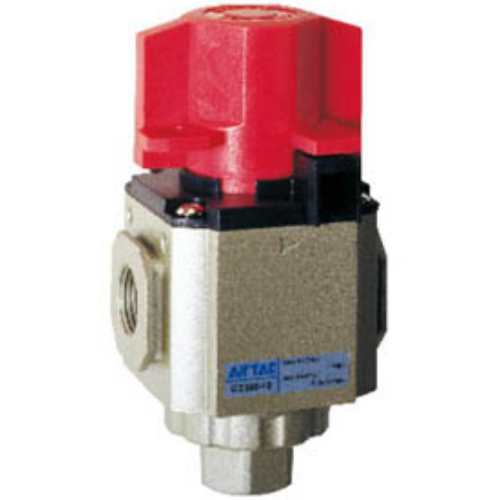

Airtac GZ Globe Valve GZ30010J
A cropped merino wool cardigan taken up a notch, thanks to the flecks of metallic thread throughout. We love it even more paired with the matching sweater-pants.
1. Modular design with bracket compatibility for integration with G/GA series FRL units;
2. Configurable as manual three-way valve operation;

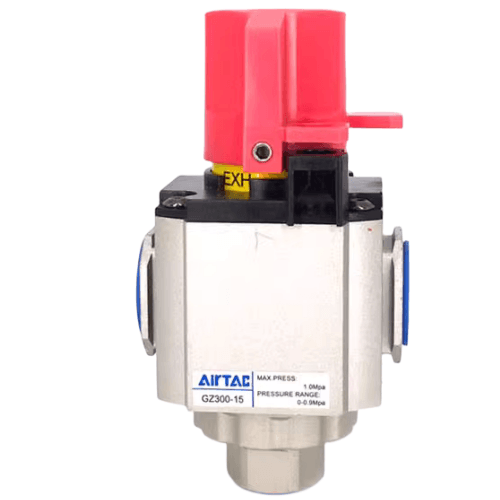

3. Visual confirmation of operational status through EXH./SUP. indicator markings;
4. OSHA-compliant safety mechanism: Features lockable actuator and integrated exhaust valve that simultaneously vents residual pressure while shutting off air supply during maintenance. This prevents accidental pressurization of downstream circuits by third-party interference, ensuring compliance with OSHA 29 CFR 1910.147 requirements for control of hazardous energy (lockout/tagout).
Category: Shut-off Valve | Brand: AIRTAC | Series: GZ
AirTAC GZ Series Shut-off Valve GZ30010J Technical Details
- Model: GZ30010J
- Type: 2-position 3-way normally closed (manual reset)
- Port configuration: 1/4" BSPP (G1/4)
- Operating pressure range: 0.1–1.0 MPa
- Maximum flow rate: 3,500 L/min (ANR)
- Actuation type: Manual lever with mechanical lock
- Body material: Anodized aluminum alloy (hard coat)
- Seal material: HNBR rubber (-20℃ to 120℃)
- Weight: 1.85 kg ±2%
- Dimensions: 98mm(L) × 64mm(W) × 128mm(H)
- Port thread depth: 12mm engagement length
- Leakage rate: ≤0.1 NL/min @ 0.5 MPa
- Cycle life: ≥500,000 operations
High-flow emergency shut-off valve with positive position lock, featuring dual-stage sealing for zero-leak performance. The chrome-plated lever mechanism provides 180° rotation with tactile feedback. Designed for ISO 15407-1 compliance, includes built-in silencer and anti-vibration mounting pads.
- Compressed air main line isolation in CNC machinery
- Emergency shutdown in plastic injection molding systems
- Process gas control in semiconductor manufacturing
- Pneumatic conveyor safety cutoff systems
- Hydraulic system pilot pressure regulation
Installation guidelines:
Mount in accessible locations with lever axis perpendicular to piping direction.
Apply 242 thread sealant on ports. Perform monthly lever stroke test under pressure.
Not suitable for vacuum applications.
| Property | Property Value |
|---|---|
| sku | GZ30010J |
| Number of Positions | 3-Port 2-Position |
| Exhaust Port Size | PT3/8 |
| Port | PT3/8 |
| Bracket Code | Without bracket |
