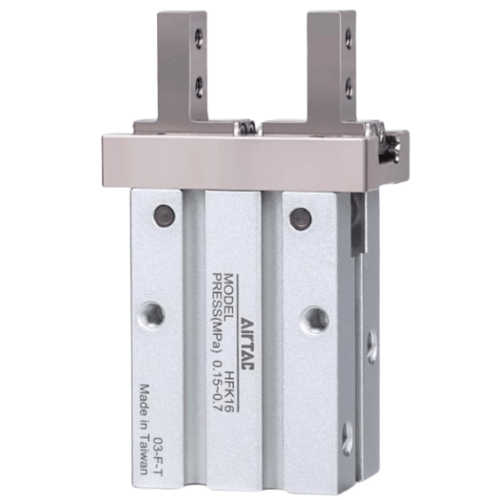

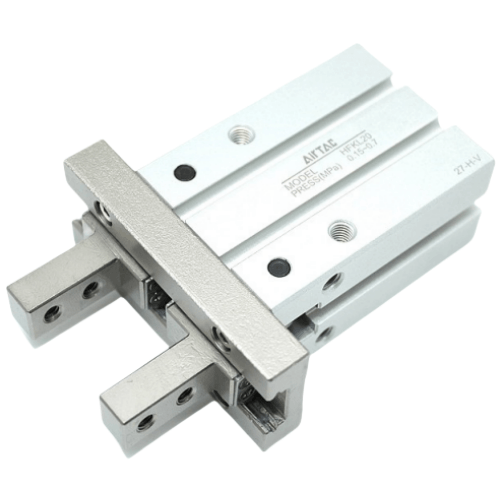

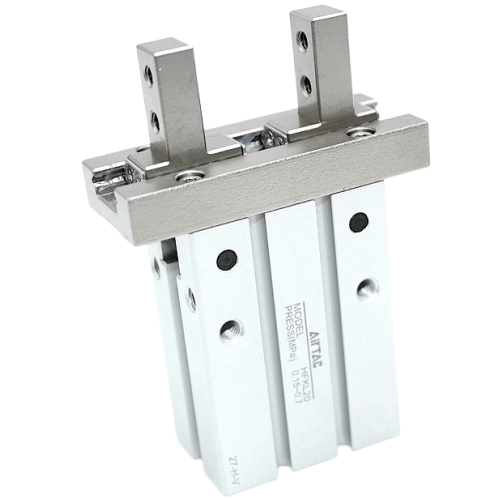

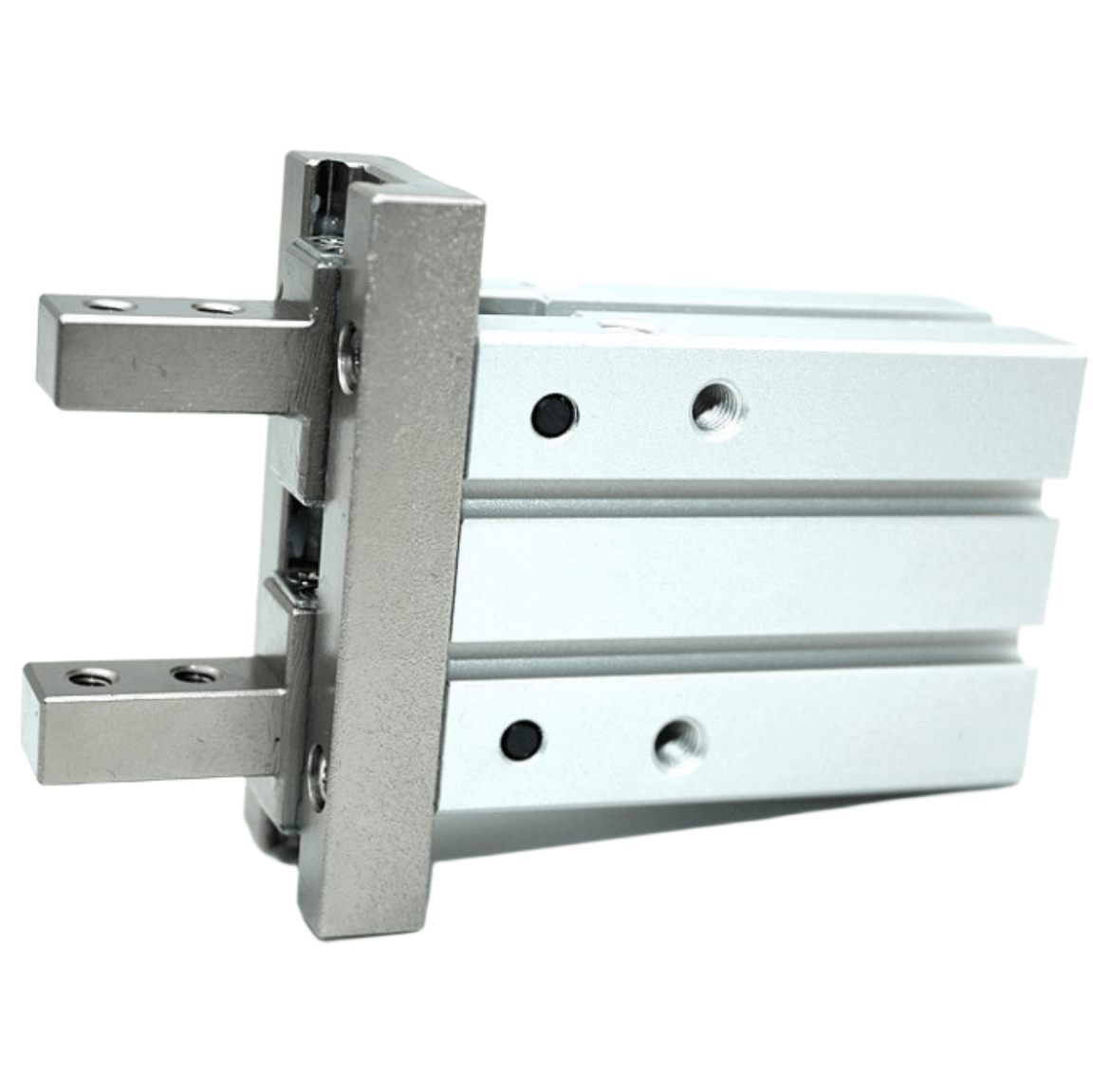

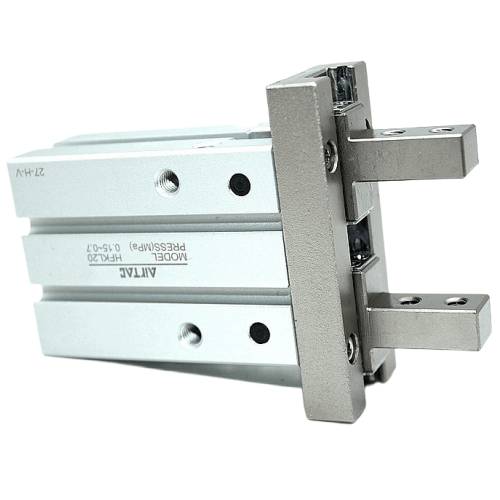

Airtac HFSKL Guided Parallel Pneumatic Gripper HFSKL10B
$162.81
Regular price
$170.31
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
HFSKL10B
Product type:
Collections:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
Pneumatic Gripper HFSKL Series with Guide Rail (Parallel Type)
Pneumatic grippers, also known as pneumatic clamping jaws or pneumatic fingers, are actuator devices that utilize compressed air as a power source to grip or clamp workpieces. Originating in Japan, they have become widely adopted in domestic automation industries. Based on design, they are categorized into Y-type grippers and parallel grippers, with bore sizes ranging from 16mm, 20mm, 25mm, 32mm, to 40mm. These devices serve as automated replacements for manual gripping operations, significantly enhancing production efficiency and operational safety. The Airtac HFSKL series represents a high-performance parallel-type pneumatic gripper integrated with guide rails, engineered for precision alignment and stability in industrial automation applications.
Classification: Parallel Pneumatic Gripper | Brand: Airtac | Series: HFSKL
Operation tip:
Maintain 0.3-0.5mm clearance between jaws and workpiece during initial setup.
Use synchronizing valve when operating multiple grippers for balanced motion.
Clean guide rails monthly with non-residue solvent.
Classification: Parallel Pneumatic Gripper | Brand: Airtac | Series: HFSKL
AirTAC HFSKL10B Rail-Guided Parallel Pneumatic Gripper Specifications
- Model: HFSKL10B
- Type: Rail-guided parallel gripper (double-acting)
- Gripping force: 28N @ 0.5MPa
- Stroke per jaw: 5mm
- Operating pressure: 0.2–0.7 MPa
- Guide rail type: Dual linear ball bearings
- Repeat accuracy: ±0.02mm
- Material: Aluminum alloy body, polyurethane seals
- Port size: M5 (1/8")
- Temperature range: -10℃ to 80℃
- Protection rating: IP54
- Lubrication: Required (ISO VG32 oil mist)
- Mounting hole pattern: 25mm × 20mm (2×M4 threaded)
- Max operating speed: 100mm/s
- Load capacity: 0.5kg (lateral), 1.2kg (vertical)
- Cycle life: 10 million operations
- Weight: 210g ±5g
- Dimensions: 78mm(L) × 34mm(W) × 30mm(H)
Precision parallel gripper with hardened steel guide rails and self-aligning jaw mounts, engineered for high-precision part handling. Features zero-backlash operation and wear compensation mechanism. Integrated T-slot design allows modular accessory mounting. Compatible with vacuum cups and custom tooling plates.
Typical Applications:
- PCB component insertion machines
- Pharmaceutical blister packaging lines
- Watch movement assembly systems
- Micro-motor shaft handling
- Optical lens positioning devices
- Semiconductor wafer cassette transfer
Operation tip:
Maintain 0.3-0.5mm clearance between jaws and workpiece during initial setup.
Use synchronizing valve when operating multiple grippers for balanced motion.
Clean guide rails monthly with non-residue solvent.
Configuration options:
- Jaw opening detection sensor ready (M3 mounting threads)
- Optional shock absorbers for high-speed applications
- Anti-vibration kits available for robotic arm mounting
- ESD-safe version (surface resistance 10⁶-10⁹Ω)
| Property | Property Value |
|---|---|
| sku | HFSKL10B |
| Gripper Optional Types | Side-mounted |
| Port Size | M3×0.5 |
| Lubrication | Please provide the specific AirTAC product attribute values that need translation, and I will return the accurate English terminology. |
| Bore Diameter | <10mm> |
| Stroke | <8mm> |
