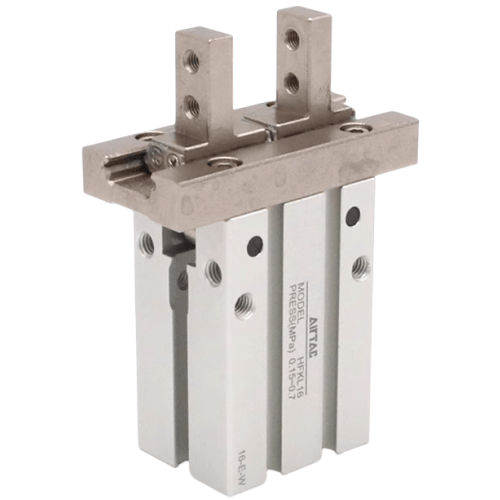

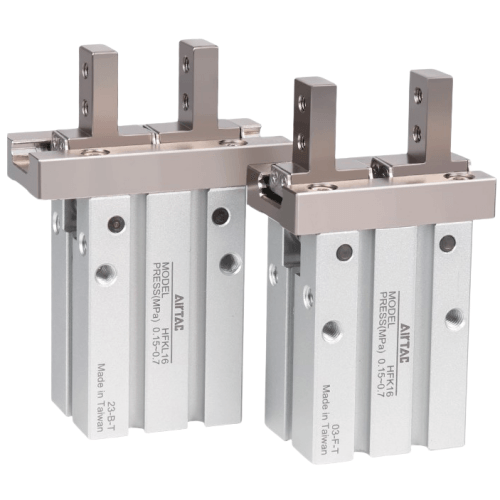

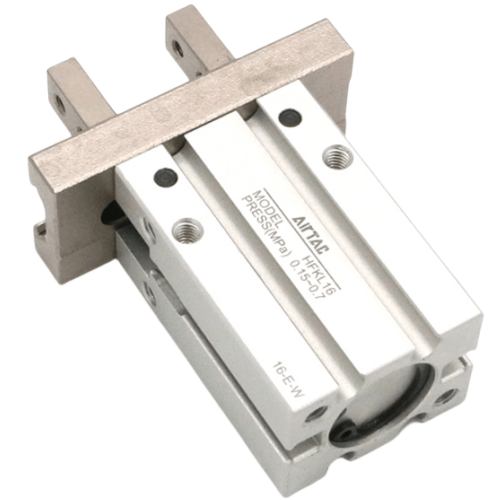

Airtac HFTKL Guided Parallel Type Pneumatic Gripper HFTKL25B
Type: Rail-Guided Parallel Pneumatic Gripper
Brand: AirTAC
Series: HFTKL
AirTAC HFTKL25B Rail-Guided Parallel Pneumatic Gripper Specifications
- Model: HFTKL25B
- Type: Rail-guided parallel gripper (double-acting)
- Gripping force: 40-220N (adjustable via air pressure)
- Stroke per jaw: 0-25mm
- Operating pressure: 0.1-0.7 MPa
- Rail type: Precision linear guide with 4-row ball bearing
- Repeat accuracy: ±0.02mm
- Operating temperature: -10℃ to 80℃
- Material:
- Main body: Aluminum alloy (hard anodized)
- Guide rails: Chrome-plated steel
- Jaws: Stainless steel base with replaceable polyurethane pads
- Port size: M5x0.8 (dual ports for simultaneous actuation)
- Compatible cylinders: Ø25mm bore size systems
- Weight: 980g ±2% (including rails and mounting hardware)
- Dimensions:
- Overall length: 148mm
- Width: 68mm (including guide rails)
- Height: 50mm (base to jaw contact surface)
- Rail length: 120mm (effective guiding surface)
Industrial-grade parallel gripper featuring synchronized jaw movement through precision linear guides, engineered for precision handling of delicate or irregularly shaped objects. The hardened rail system provides exceptional rigidity and wear resistance, maintaining alignment accuracy through millions of cycles. Integrated mounting slots allow direct integration with robotic arms or custom fixtures.
- High-speed pick-and-place operations in electronics assembly
- Precision component positioning for CNC machine tending
- Glass panel handling in display manufacturing
- Packaging line product sorting with variable object sizes
- Laboratory automation requiring contamination-free gripping
Operation tip:
For optimal performance, use filtered air (5-40μm) with lubricator (ISO VG32 oil).
Regular rail cleaning and re-lubrication every 500,000 cycles recommended. Avoid side
impact loads exceeding 150N during operation.
| Property | Property Value |
|---|---|
| sku | HFTKL25B |
| Gripper Optional Types | Side-mounted |
| Port Size | M5×0.8 |
| Lubrication | Please provide the specific AirTAC product attribute values that need translation, and I will return the accurate English terminology. |
| Bore Diameter | <25 mm> |
| Stroke | 22mm |
