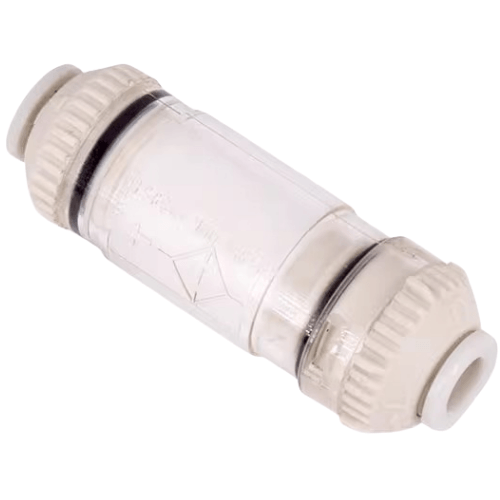

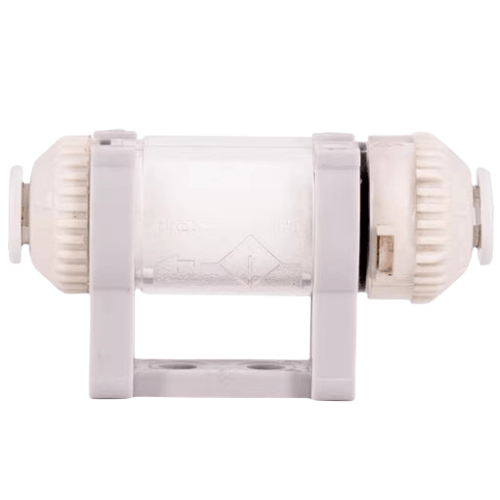

Airtac KZFC Vacuum Filter X-KZFC10006B
AirTAC X-KZFC10006B Vacuum Filter Technical Specifications
- Model: X-KZFC10006B
- Type: Compact inline vacuum filter with manual drain
- Filtration grade: 40μm (5μm optional cartridge available)
- Max flow rate: 180 L/min (at 0.6 MPa)
- Port size: PT1/4 (G1/4 equivalent)
- Body material: Anodized aluminum alloy
- Seal material: NBR (Nitrile rubber)
- Operating pressure: 0.05–1.0 MPa
- Temperature range: -5℃ to 60℃ (non-freezing)
- Weight: 320g ±5% (dry condition)
- Dimensions: 98mm(L) × 52mm(W) × 52mm(H)
- Bowl capacity: 12ml condensate
- Pressure loss: ≤0.02 MPa (at rated flow)
- Installation orientation: Vertical/horizontal (bowl downward)
High-efficiency coalescing filter designed for vacuum line protection, featuring dual-stage filtration with cyclonic pre-separation. The transparent polycarbonate bowl allows visual monitoring of contamination levels. Anti-backflow design prevents liquid re-entry during pressure fluctuations.
- Vacuum gripping systems in pick-and-place robots
- Medical suction equipment filtration
- Semiconductor wafer handling vacuum lines
- Packaging machine vacuum generators
- Laboratory vacuum chamber supply lines
Maintenance tip:
Drain accumulated liquid daily in high-humidity environments. Replace filter element every 2,000 operational hours or when airflow resistance increases by 15%. Use only compatible silicone-based lubricants for O-ring maintenance.
- Auto drain version available (X-KZFC10006B-A)
- Stainless steel bowl option for chemical environments
- Thread adapters for NPT/BSPP conversions
| Property | Property Value |
|---|---|
| sku | X-KZFC10006B |
