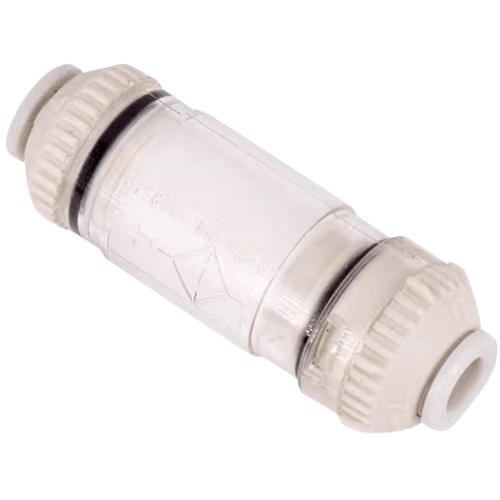

Airtac KZFC Vacuum Filter X-KZFC20008B
AirTAC X-KZFC Vacuum Filter X-KZFC20008B Technical Details
- Model: X-KZFC20008B
- Type: Compact inline vacuum filter with auto-drain
- Flow capacity: 200 L/min @ 0.6 MPa
- Filtration grade: 40μm (primary), 5μm (secondary)
- Port size: PT1/4 (G1/4 optional)
- Operating pressure: 0.05–0.95 MPa
- Body material: Anodized aluminum alloy
- Seal material: HNBR rubber (-20℃ to 120℃)
- Filter element: Sintered stainless steel mesh
- Drain type: Manual/auto hybrid system
- Weight: 380g ±5g
- Dimensions: 98mm(L) × 62mm(W) × 82mm(H)
- Pressure loss: ≤0.02 MPa at max flow
- Moisture separation efficiency: ≥95%
High-efficiency dual-stage vacuum filtration unit featuring corrosion-resistant construction and zero power operation. The staggered baffle design enhances liquid separation while the cyclone structure reduces particulate carryover. Maintenance-friendly twist-lock element replacement system with visual contamination indicator window.
- Vacuum chuck systems in CNC machining centers
- Semiconductor wafer handling robotics
- Medical vacuum suction devices
- Packaging machine pick-and-place systems
- Automotive paint booth ventilation
Installation protocol:
Mount vertically with arrow marking aligned to airflow direction (→).
Perform weekly manual drainage if automatic drain isn't triggered.
Replace filter element when pressure drop exceeds 0.03MPa or
annually under normal conditions.
Critical note:
Do not use with phosphate ester-based lubricants or
chemically aggressive media. Always install downstream
of pressure regulators and upstream of vacuum generators.
| Property | Property Value |
|---|---|
| sku | X-KZFC20008B |
