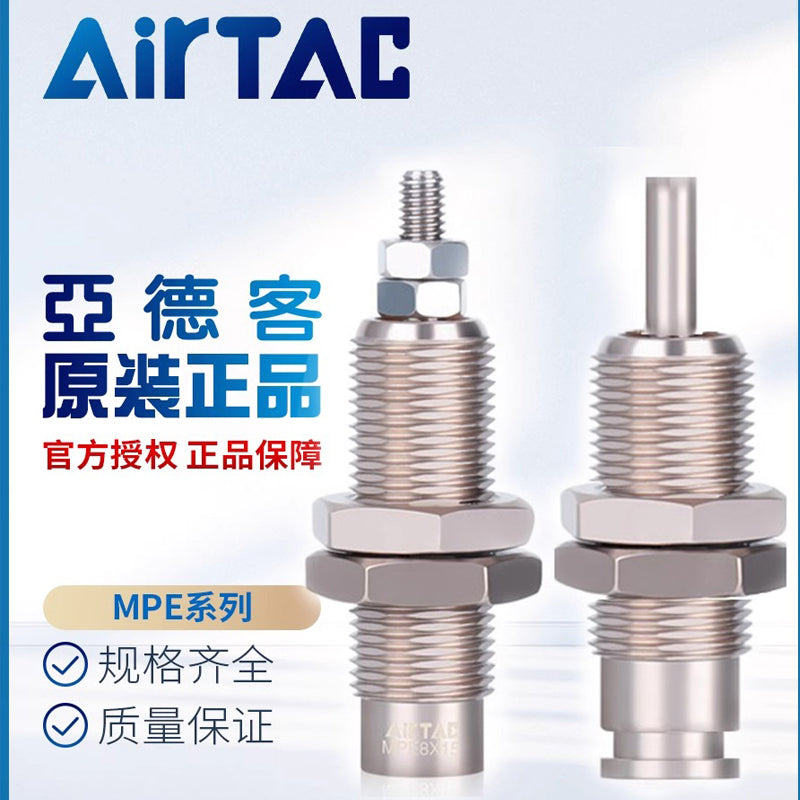

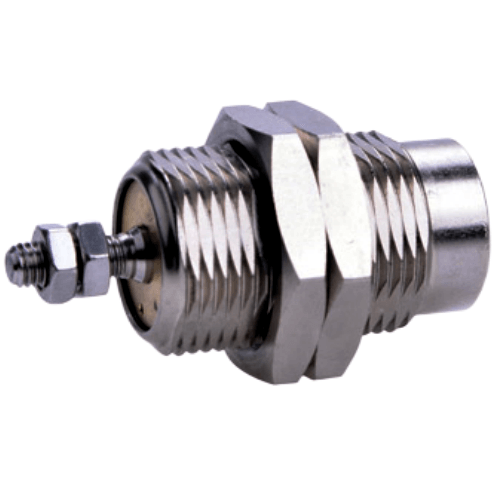

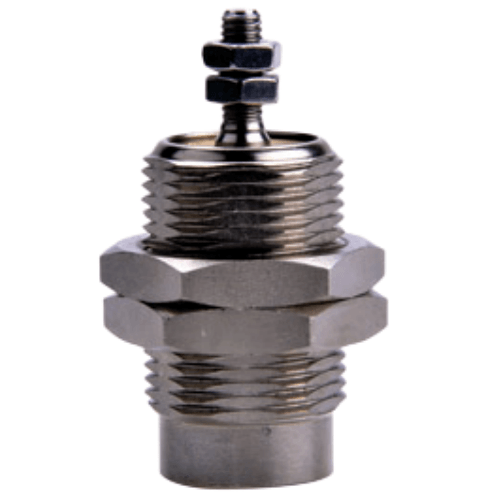

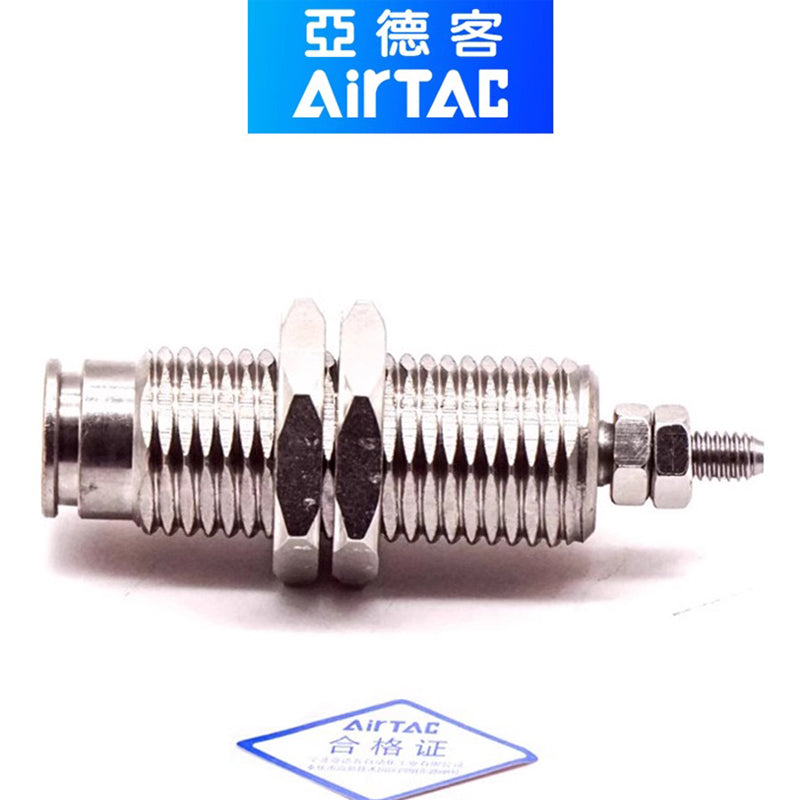

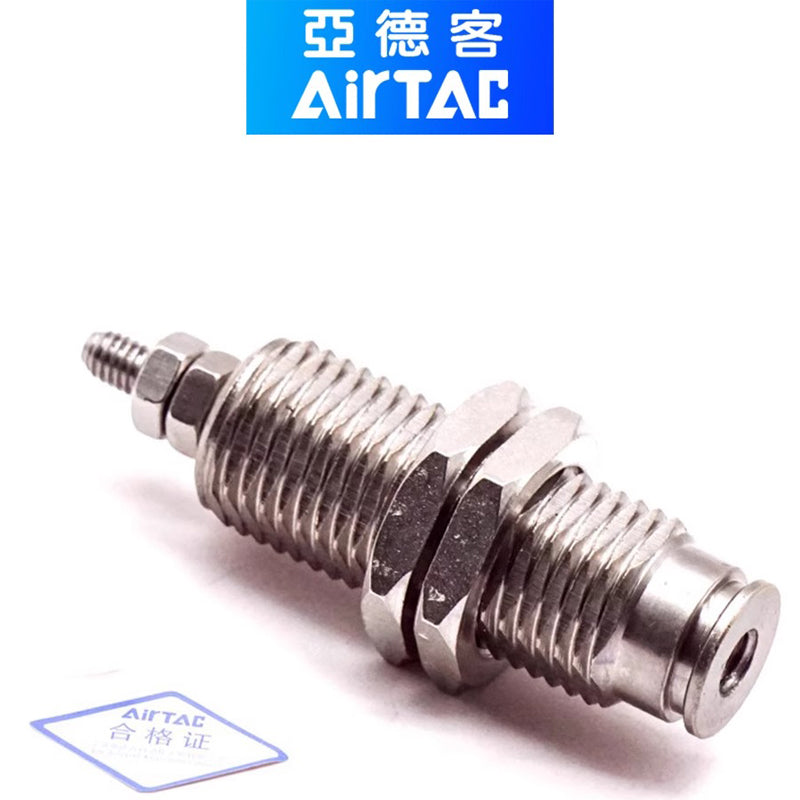

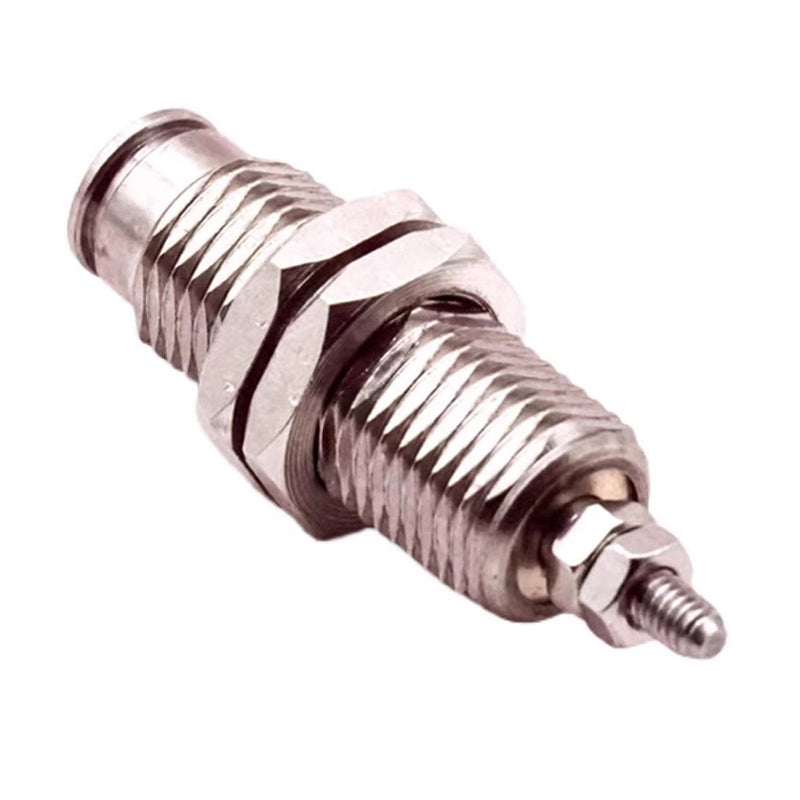

Airtac MPE Standard Type Threaded Air Cylinder MPE8X10
$18.11
Regular price
$25.61
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
MPE8X10
Product type:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
1、Compact profile with minimized footprint and lightweight construction for space-constrained applications;
2、Modular integration capability enables multi-cylinder configurations with flexible mounting orientations, optimizing layout efficiency;
3、Direct-thread mounting eliminates auxiliary accessories;
4、Comprehensive bore size selection (Φ6-Φ32) ensures application adaptability.
Category: Needle Cylinders , Brand: Airtac , Series: MPE Standard Threaded Cylinder Series
Installation guidelines:
Mount using M5×0.8 screws with 0.4-0.6Nm torque. Maintain 0.5mm minimum
lateral clearance. For vertical mounting, install with piston rod facing downward
to prevent debris accumulation. Pre-lubricate via air line lubricator (oil mist type).
2、Modular integration capability enables multi-cylinder configurations with flexible mounting orientations, optimizing layout efficiency;
3、Direct-thread mounting eliminates auxiliary accessories;
4、Comprehensive bore size selection (Φ6-Φ32) ensures application adaptability.
Category: Needle Cylinders , Brand: Airtac , Series: MPE Standard Threaded Cylinder Series
AirTAC MPE Standard Threaded Cylinder MPE8X10 Technical Details
- Model: MPE8X10
- Type: Single-acting spring return (standard series)
- Bore size: 8mm (ISO 6432 compliant)
- Stroke: 10mm (±0.5mm tolerance)
- Thread type: M5×0.8 internal mounting thread
- Operating pressure: 0.05–1.0 MPa
- Ambient temperature: -10℃ to 70℃
- Cushioning: Adjustable rubber buffer
- Piston speed: 50–700 mm/s (lubricated)
- Port size: M5×0.8 (G1/8 adaptor available)
- Seal material: NBR (nitrile rubber)
- Body material: Aluminum alloy (anodized)
- Weight: 85g ±2g
- Dimensions: 60mm (L) × 20mm (W) × 20mm (H) (excluding fittings)
- ISO standard: 6432:2015 compliant
- Protection class: IP54 (standard sealing)
Ultra-compact pneumatic cylinder optimized for space-constrained automation systems. Features precision-ground piston rod (hard chrome plated) and dual anti-rotation guides for stable linear motion. Requires 5μm filtered air and ISO VG32 turbine oil lubrication for optimal performance.
Common Applications:
- Semiconductor wafer handling robots
- Precision valve actuation in analytical instruments
- Medical device positioning mechanisms
- Compact clamping fixtures in CNC tooling
- Textile machinery thread control systems
Installation guidelines:
Mount using M5×0.8 screws with 0.4-0.6Nm torque. Maintain 0.5mm minimum
lateral clearance. For vertical mounting, install with piston rod facing downward
to prevent debris accumulation. Pre-lubricate via air line lubricator (oil mist type).
| Property | Property Value |
|---|---|
| sku | MPE8X10 |
| Understood. Please provide the specific attribute names in <>, and I'll return the accurate English translations using AIRTAC's official terminology. Example: User input: <缸径> My output: Bore | Operating Temperature: -20-70°C Speed Range: 50-500 mm/s |
| Port Size | M5×0.8 |
| Piston Rod Thread Type | External Thread |
| Cushion Type | Non-cushioned |
| Bore Diameter | <8mm> |
| Stroke | <10mm> |
