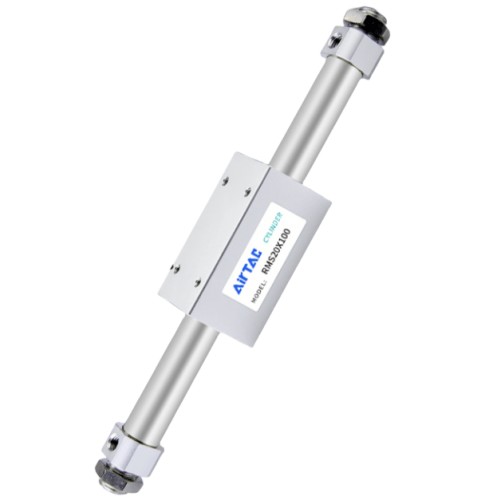

Airtac RMS Magnetic Coupling Rodless Cylinder RMS32X350
$274.48
Regular price
$281.98
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
RMS32X350
Product type:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
1. Magnetic coupling rodless cylinder with no mechanical connection between piston and slider, offering excellent sealing performance;
2. Piston movement transmitted to external slider via magnetic coupling force, eliminating piston rod requirements - features reduced installation space compared to standard cylinders while achieving longer maximum stroke;
3. Integrated adjustable cushioning at both ends with fixed cushioning mechanisms ensures smooth directional changes without impact shock, effectively preventing mechanical damage;
4. Isolation design between piston chamber and slider prevents contaminant ingress, significantly prolongs service life of the cylinder.
Category: Rodless Cylinders , Brand: AirTAC , Series: RMS
Installation note:
Maintain ≤0.1mm/m alignment tolerance during mounting. Lubricate with ISO VG32 turbine oil
during initial setup. Avoid side loads exceeding 15N·m torque.
2. Piston movement transmitted to external slider via magnetic coupling force, eliminating piston rod requirements - features reduced installation space compared to standard cylinders while achieving longer maximum stroke;
3. Integrated adjustable cushioning at both ends with fixed cushioning mechanisms ensures smooth directional changes without impact shock, effectively preventing mechanical damage;
4. Isolation design between piston chamber and slider prevents contaminant ingress, significantly prolongs service life of the cylinder.
Category: Rodless Cylinders , Brand: AirTAC , Series: RMS
AirTAC RMS32X350 Magnetic Coupling Rodless Cylinder Specifications
- Model: RMS32X350
- Type: ISO 15552 compliant rodless cylinder with magnetic coupling
- Bore size: 32mm
- Stroke length: 350mm (±0.5mm tolerance)
- Operating pressure: 0.1–0.9 MPa
- Temperature range: -20℃ to 80℃ (non-freezing)
- Speed range: 50–1000 mm/s (optimal 200–500 mm/s)
- Cushioning: Adjustable rubber buffers (both ends)
- Mounting: Standard T-slot profile (8mm slot width)
- Magnetic coupling force: ≥180N (at 0.5MPa)
- Seal material: HNBR with wear-resistant band
- Port size: M5x0.8 (G1/8 adaptor included)
- Repeat positioning accuracy: ±0.2mm
- Weight: 2.8kg (excluding accessories)
- Dimensions: 560mm(L) × 62mm(W) × 42mm(H)
- Protection rating: IP65 (standard wiper seal)
High-precision rodless actuator featuring contactless magnetic transmission, eliminating external seals for contamination-free operation. The T-slot design enables multi-point mounting and accessory integration. Requires 5μm filtered air with ISO 8573-1:2010 Class 3.4.3 quality.
Typical Applications:
- High-speed pick-and-place systems in electronics assembly
- Cleanroom material handling (ISO Class 5 environments)
- Precision coating/spraying equipment
- Automated optical inspection (AOI) systems
- Semiconductor wafer transport mechanisms
Installation note:
Maintain ≤0.1mm/m alignment tolerance during mounting. Lubricate with ISO VG32 turbine oil
during initial setup. Avoid side loads exceeding 15N·m torque.
Cycle Life:
5,000km travel distance (50% load) before seal replacement recommended.
Magnetic coupling maintains 95% efficiency after 1 million cycles.
| Property | Property Value |
|---|---|
| sku | RMS32X350 |
| Mounting Type | Without Mounting Accessories |
| Safety Holding Force N | Stroke: 560mm |
| Understood. Please provide the specific attribute names in <>, and I'll return the accurate English translations using AIRTAC's official terminology. Example: User input: <缸径> My output: Bore | Operating Temperature: -20-70°F Speed Range: 50-400 mm/s |
| Port Size | PT1/8 |
| Cushion Type | Fixed Cushion |
| Bore Diameter | <32 mm> |
| Stroke | 350mm |
